***Size 8"" x 337mm has a lead time 3-4 Weeks. Contact AIMS for assistance***

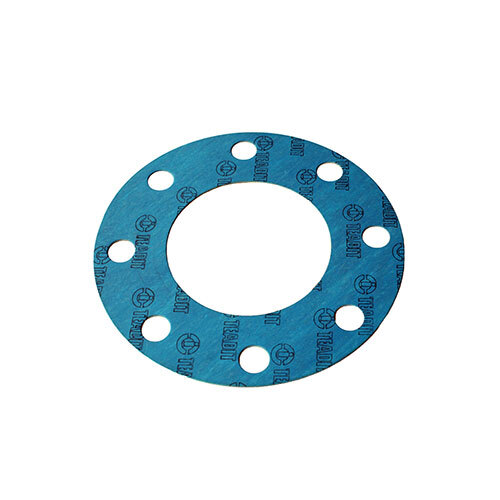

Fiber Gaskets

  • AAP supplies compressed ffibregaskets made from Aramid fibres, bonded with Nitrile Rubber (NBR).
  • It is manufactured by means of a hot calendar process under rigorous quality control standards that are registered under ISO 9001 certifcation.

Working Conditions

  • Peak Temperature - + 400°C
  • Constant Temperature - + 240°C
  • Peak Pressure - up to 11000 kPa
  • Constant Working Pressure - 5000 kPa

Applications:

  • Air, Water, Low-pressure steam, petroleum derivatives, oil, gas, and general chemical products.

Specifications

  • AIMS SKU A0081512
  • Brand AAP
  • Model Number LGE15

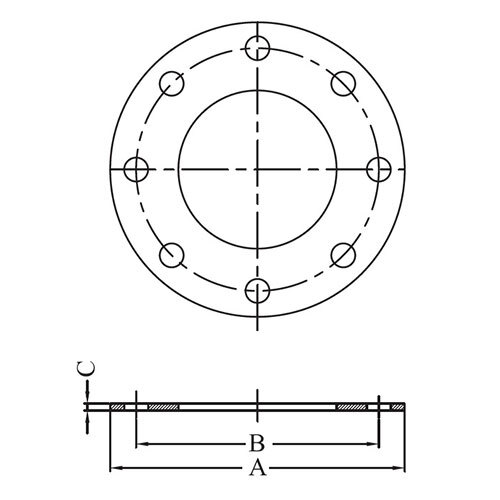

  • Thickness (C) 1.5
  • Pipe Size (inch) 1/2
  • Outer Diameter (A) mm 95
  • Pipe Size (mm) 15
  • Pitch Circle Diameter (B) mm 67
  • Holes Diameter 14
  • No. Of Holes 4
  • Type Fiber Gasket
SKU: A0081512

AAP 1/2" x 95mm Fiber Gasket Table-E LGE15

AAP - Gasket - Fiber

$2.19
