Description

Natural Rubber Gaskets

  • AAP stocks gaskets that are made from commercial-grade natural rubber with cotton reinforcement that are intended for general purpose applications

Chemical Resistance

  • Weathering and Ozone - Fair
  • Abrasion - Fair
  • Acids - Poor
  • Caustics/ Alkalies - Good
  • Oils and Petroleum Products - poor
  • Organic Solvents - Not Recommended

Basic Properties

  • Speci?c Gravity - 1.55 g/cm
  • Hardness - 70 Shore A
  • Tensile - 3500 kPa
  • Elongation - 300%
  • Max Temperature - 65°C

 Applications:

  • Air, Water, Low-pressure steam



Specifications

  • AIMS SKU A0081507
  • Brand AAP
  • Model Number LG1650

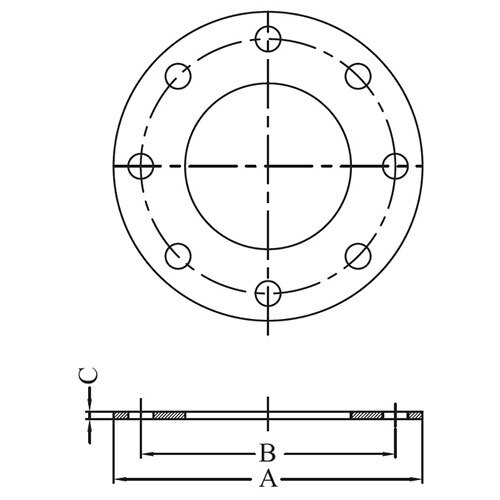

  • Thickness (C) 3
  • Pipe Size (inch) 2
  • Outer Diameter (A) mm 165
  • Pipe Size (mm) 50
  • Pitch Circle Diameter (B) mm 125
  • Holes Diameter 18
  • No. Of Holes 4
  • Type Natural Rubber Insertion Gasket
SKU: A0081507 On Sale

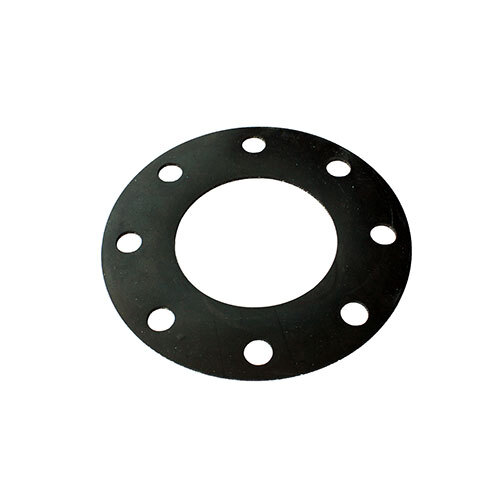

AAP 2" x 165mm Natural Rubber Insertion Gasket PN10/16 LG1650

AAP - Insertion Gasket - Natural Rubber

$2.09
$2.78
