Description

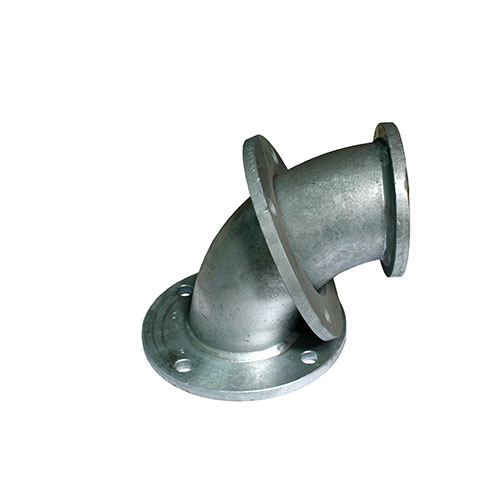

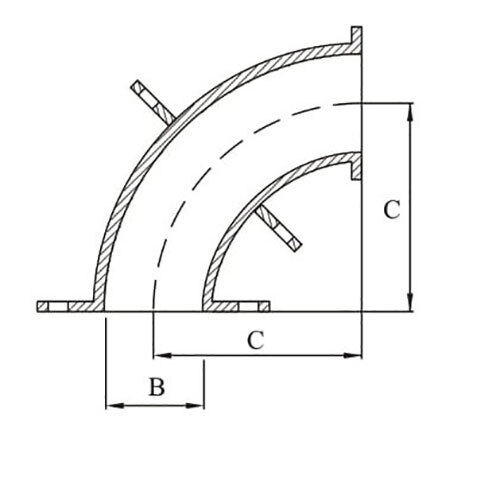

AAP Loose Flange 90deg Elbow SGP

Material Speci?cations

Galvanised Flanged Irrigation Fittings
WALL THICKNESS FOR FITTINGS
	3" - 80mm	4" - 100mm	5" - 125mm	6" - 150mm	8" - 200mm	10" - 250mm	12" - 300mm	14" - 350mm	16" - 400mm	18" - 450mm
GENERAL PURPOSE - SGP	4.2mm	4.5mm	4.5mm	5.0mm	5.8mm	-	-	-	-	-
HEAVY DUTY - STD WGT	5.5mm	6.0mm	6.5mm	7.1mm	8.1mm	9.3mm	9.5mm	9.5mm	9.5mm	9.5mm
FLANGE - TAB D	12mm	12mm	13mm	13mm	13mm	16mm	19mm	22mm	22mm	25mm

TABLE D FLANGE BOLTING DETAILS
NUMBER OF HOLES	4	4	8	8	8	8	12	12	12	12
DIAMETER OF BOLT HOLES	18mm	18mm	18mm	18mm	18mm	22mm	22mm	26mm	26mm	26mm
FIXED FLANGE FASTENER SIZE & THREAD	M16 x 45	M16 x 45	M16 x 45	M16 x 45	M16 x 50	M20 x 50	M20 x 50	M24 x 60	M24 x 60	M24 x 75
LOOSE FLANGE FASTENER SIZE & THREAD	M16 x 60	M16 x 60	M16 x 60	M16 x 60	M16 x 65	M20 x 65	M20 x 65	M24 x 80	M24 x 80	M24 x 100
