***Lead time is 20 Weeks from receipt of the order. Contact AIMS for further assistance.***

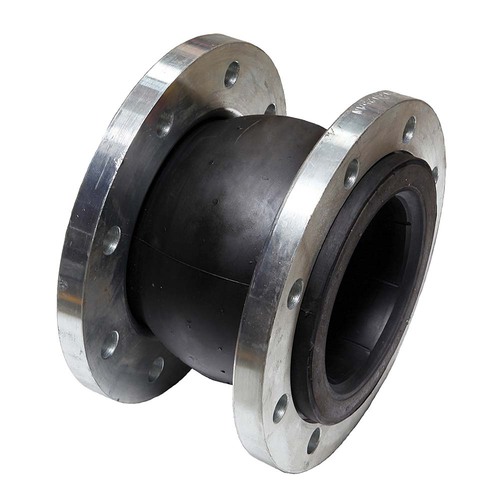

AAP NBR Rubber Bellow Table E

• Flange Standard: AS2129 E
• Temperature: -25°C + 100°C
• Composition: Nitrile Butadiene
• Generally Resistant: Many Hydrocarbons, fats, oils, greases, hydraulic Fluids, and chemical
• Generally affected or attacked: Ozone's, keystones, esters, aldehydes, chlorinated and nitro hydrocarbons
• Applications: Air, Compressed Air, Water, Sea Water, Hot Water, Weak Acid
• Bursting Pressure: 6000kPa
• Vacuity: 86.7 kPa

About Rubber Bellows

• A Rubber bellow is a flexible jointmade from heat-resisting synthetic elastomers and molded in a spherical shape with metal floating flanges.
• Rubber Bellows (Flexible Rubber Joints) are installed in piping systems to absorb movements in three directions:
  • Axial - the movement of elongation and compression along the centre line
  • Lateral - offset movement from the centre line
  • Angular - offset bending about the centre line
