Non-Reinforced Rubber Gaskets

  • AAP also stocks a multi-purpose premium grade rubber gasket that has very good resistance to petroleum-based ?uids. The sheeting contains 100% NBR polymer content

Chemical Resistance

  • Weathering and Ozone - Fair
  • Abrasion - Fair
  • Acids - Poor
  • Caustics/Alkalies - Good
  • Oils and Petroleum Products - Poor
  • Organic Solvents - Not Recommended

Basic Properties

  • Speci?c Gravity - 1.55 g/cm_
  • Hardness - 70 Shore A
  • Tensile - 3500 kPa
  • Elongation - 300%
  • Max Temperature - 65°C

Applications:

  • Air, Water, Low-pressure steam



Specifications

  • AIMS SKU A0081504
  • Brand AAP
  • Model Number LGNF40
  • Thickness (C) 3
  • Pipe Size (inch) 1-1/2
  • Outer Diameter (A) mm 133
  • Pipe Size (mm) 40
  • Pitch Circle Diameter (B) mm 98
  • Holes Diameter 14
  • No. Of Holes 4
  • Type Non-Reinforced Gasket
SKU: A0081504 On Sale

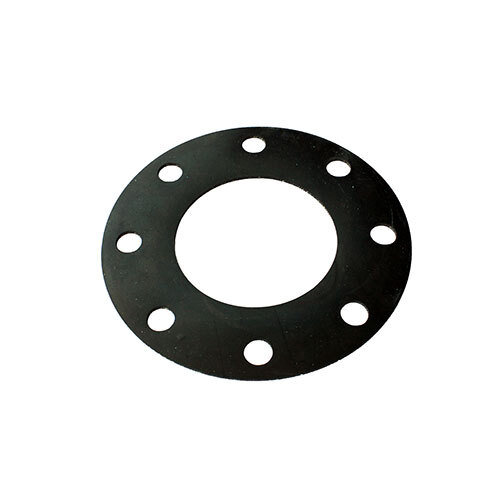

AAP 1-1/2" x 133mm Non-Reinforced Gasket Table-E LGNF40

AAP - Insertion Gasket - Non-Reinforced Gasket

$4.95
$6.60
