Description

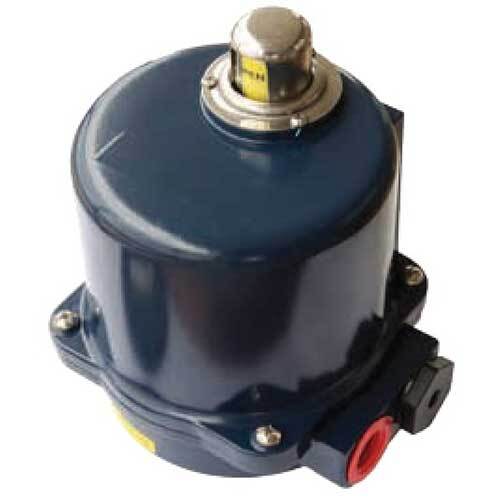

OM-1 Electric Actuator

  • A combination of motor that can create a movement of the load, or an action requiring a force such as clamping, using an electric motor to create the necessary force.
  • When the electric motor is operating, the hand-wheel won’t rotate for personal safety purposes.
  • Torque Range: 35 Nm - 150Nm

Specifications

  • AIMS SKU A0081016
  • Brand AAP
  • Model Number VOM1110VAC
  • Torque (Nm) 35

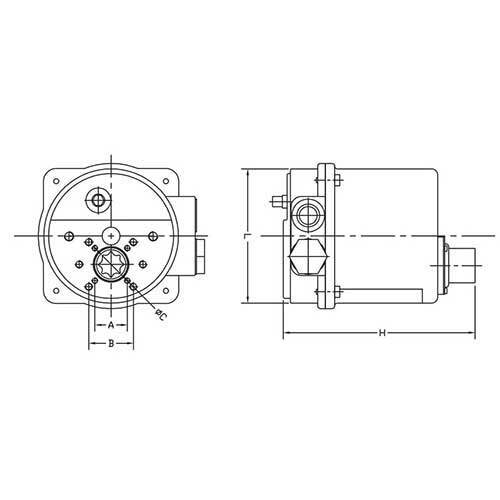

  • B 35
  • Approx. Kg/pc 2
  • C 19
  • A 25
  • H 150
  • Volts 110
  • AC/DC AC
  • L 115
  • Power (watts) 10
  • Speed (Sec/90 deg) 20
SKU: A0081016 On Sale

AAP 110V AC OM-1 Electric Actuator VOM1110VAC

AAP Electric Actuator

$554.69
$739.59
Sale Ends in
