Description

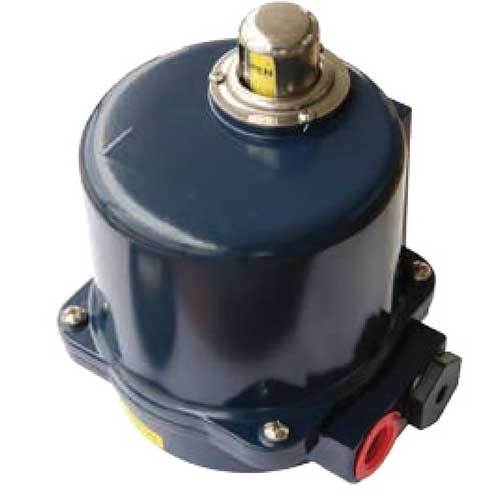

OM-A-M Electric Actuator

  • A combination of motor that can create a movement of the load, or an action requiring a force such as clamping, using an electric motor to create the necessary force.
  • When the electric motor is operating, the hand-wheel won’t rotate for personal safety purposes.
  • Torque Range: 35 Nm - 150Nm

Specifications

  • AIMS SKU A0081040
  • Brand AAP
  • Model Number VOMAM110VAC
  • Torque (Nm) 50

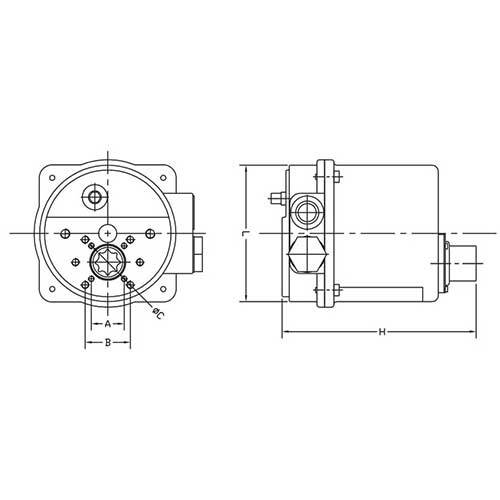

  • B 50
  • Approx. Kg/pc 3
  • C 23
  • A 35
  • H 190
  • Volts 110
  • AC/DC AC/DC
  • L 130
  • Power (watts) 10
  • Speed (Sec/90 deg) 20
SKU: A0081040

AAP 110V AC/DC OM-A-M Electric Actuator (Manual Override) VOMAM110VAC

AAP Electric Actuator

$1,469.04
RRP $2,742.20
SAVE $1,273.16 (46%)
