Description

***Size 8" and 6" has a lead time of 16 Weeks from the date of order. Contact AIMS for assistance***

Plate Flat Faced Flange

  • Standard: AS4087 - Metallic Flanges for Waterworks Purposes (Australian)
  • Application: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • Marking: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard

About Plate Steel Flanges:

  • Plate flanges are mainly used for light-duty, lower-pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
  • The manufacturing method involves cutting and machining from plate steel.

Specifications

  • AIMS SKU A0079092
  • Brand AAP
  • Model Number 4087SPN2194
  • Pipe Size (inch) 4"
  • Approx. Weight kg/pc 4.32

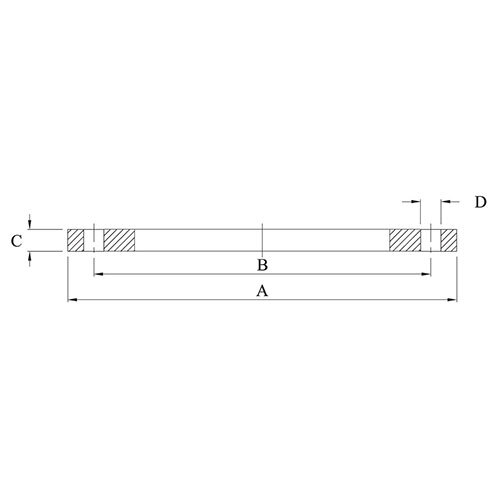

  • Flange Outside Diameter (A) 230
  • Drilling Bolt Circle Diameter (B) 191
  • Drilling No. Of Holes 8
  • Drilling Bolt Size M16
  • Type Plate Flat Faced Flange
SKU: A0079092 On Sale

AAP 4" Plate Flat Faced Flange 4087 PN21 - 4087 SPN2194

AAP - Plate Flat Faced flange

$31.97
$42.63
