Description

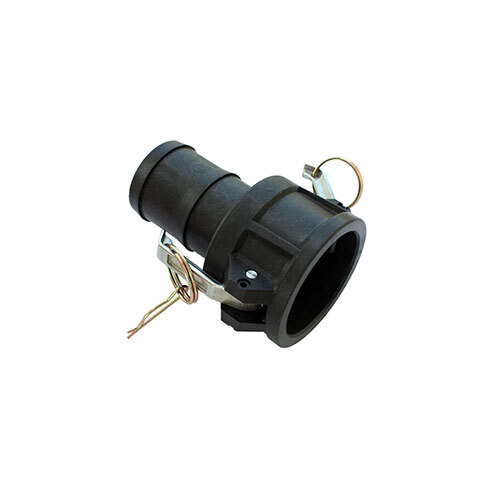

AAP Polypropylene Camlock Coupler Type-C x Male Hosebarb

Specifications and Typical of Applications in Poly Propylene (Black) PP

30% glass filled.
Use extensively throughout the chemical and agricultural sector.
AG Spraying Equipment, Chemical Industry.

About Camlock

Camlocks are also known as Cam and Groove Fittings
The AAP Industries flange of Camlock is manufactured to interchange with all products produced to Mil-Spec A-A 59326.
Size 1/2" (15mm) and 8" (200mm) fittings are not covered by Mil-Spec A-A 59326, these sizes are to manufactures specification only.
Used were quick, convenient connection and disconnection of piping and hose are required.
Industries - irrigation, Pumping, Hose Distributors, Bulk Tankers, Water Carriers, General Industry.
Medium - Water, Oil, powders, some Hydrocarbons, and Chemicals (check compatibility charts).
Threads - The threads are cut according to ISO 228.
Maximum Temperature - NBR (Buna) Gasket 100 degrees Celcius.
Spare Parts - AAP has available a flange of spare parts to suit the camlocks, such as Brass Handles (code CBH…), Handle Pins (code CP….), and NBR Gaskets (code CGN…).

Specifications

AIMS SKU A0077590

Brand AAP

Model Number CPP20C

Pipe Size (inch) 3/4

Pipe Size (mm) 20

Approx. Kg/pc 0.08

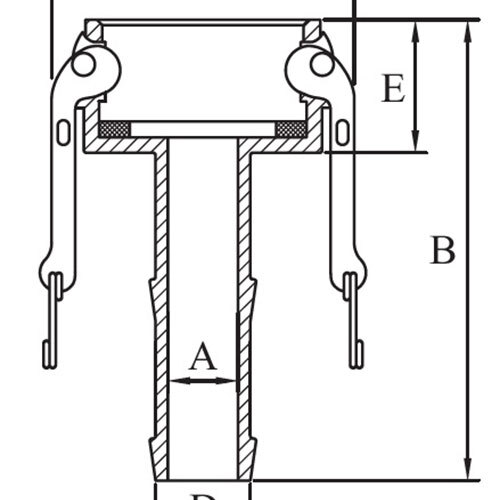

Length (B) 84

Distance Across Closed Cam Arms 53

Hose Shank O.D (D) 20

Hose Shank I.D (A) 14

Coupler Length (E) 32

Type Camlock Coupler
Pipe Fitting Connection Female Camlock x Hosebarb
Fitting Material Finish Polypropylene
