Description

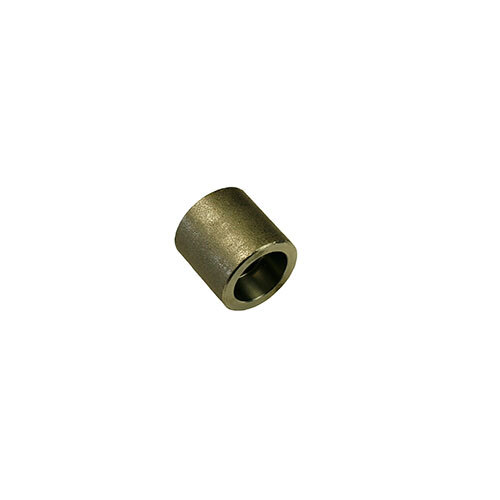

AAP Reducing Coupling Socket Weld

(High-Pressure Fittings)

  • Rating: Socketweld End – 3000lbs
  • Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079354
  • Brand AAP
  • Model Number PCP2015S

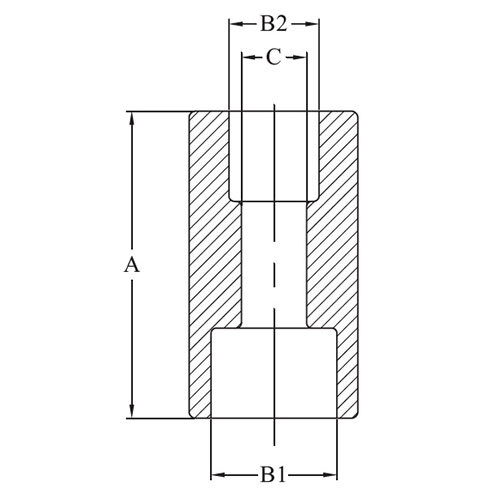

  • Length (A) 34.5
  • Pipe Size (inch) 3/4 x 1/2
  • Pipe Size (mm) 20 x 25
  • Approx. Kg/pc 0.2
  • Socket Bore Diameter (B) 27.4
  • Socket Bore Diameter (B2) 21.8
  • Bore Diameter Of Fittings ( C ) 14.1
  • Type Socket Weld Reducing Coupling
  • Pipe Fitting Connection Socket Weld
SKU: A0079354 On Sale

AAP 20 x 25mm High Pressure Reducing Coupling Socket Weld PCP2015S

AAP - Socket Weld - Reducing Coupling

$6.05
$8.07
