Description

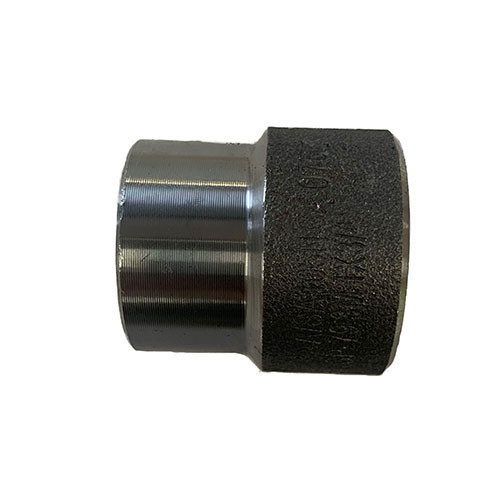

AAP Reducing Insert

(High-Pressure Fittings)

  • Rating: Threaded End – 3000lbs
  • Standards: MSS SP-97-2012 - Integrally Reinforced Forged Branch Outlet Fittings - Socket Welding, Threaded and Buttwelding Ends
  • Threads: ANSI B1.20.1 – American National Standard Taper Thread (NPT)
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size



Specifications

  • AIMS SKU A0079591
  • Brand AAP
  • Model Number PI2015S

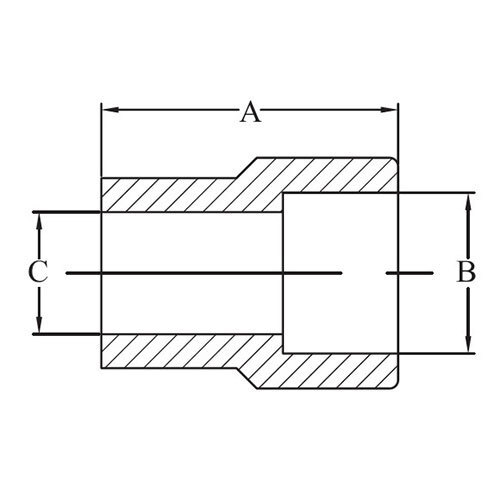

  • Length (A) 32
  • Pipe Size (inch) 3/4 x 1/2
  • Pipe Size (mm) 20 x 15
  • Approx. Kg/pc 0.1
  • Socket Bore Diameter (B) 22
  • Bore Diameter Of Fittings ( C ) 16
  • Type Reducing Insert
SKU: A0079591

AAP 20 x 15mm High Pressure Reducing Insert SP79-2011 PI2015S

AAP - Reducing Insert

$5.84
RRP $10.90
SAVE $5.06 (46%)
