Description

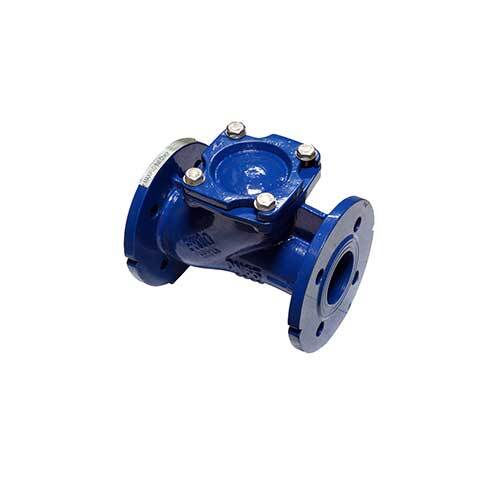

AAP Resilient Seat flanged Ball Check Valve PN10 Table-D

Application:

  • Water Treatment Plant

Specifications:

  • Cold Working Pressure- 1000kPa
  • Max Working Temperature - 120°C
  • Fflanges - AS2129 T/D

Material List:

  • Body - Ductile Iron
  • Cover - Ductile Iron
  • Ball - Metal + EPDM
  • Gasket - EPDM

About Ball Check Valves

  • This valve is used where the full uninterrupted flow is required.
  • The design of the valve incorporates a compartment for when the fluid is pumped through the valves the EPDM encapsulated steel ball is pushed into this compartment and held there whilst the up steam pressure is applied.
  • When the pump is turned off the ball falls from its compartment and with backpressure assists drops back into the flow path and blocks any return of fluid back to the pump.

Specifications

  • AIMS SKU A0081476
  • Brand AAP
  • Model Number VFBC94D
  • Pipe Size (inch) 4
  • Pipe Size (mm) 100

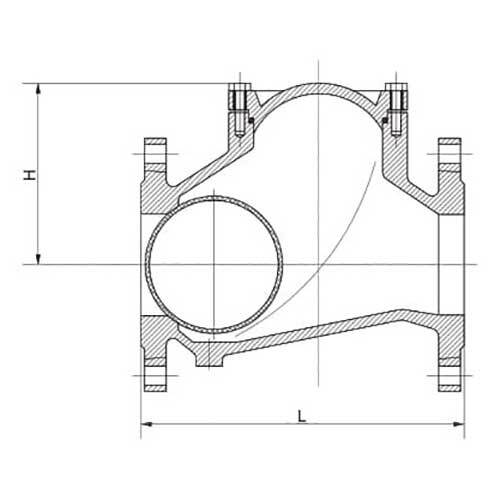

  • Valve Length (l) 300
  • Height of handle from Valve (H) 186
  • Number of holes 4
  • Hole Diameter 18
  • Approx Kg/pc 21.7
  • Type Resilient Check Valve
  • Fitting Material Finish Ductile Iron
SKU: A0081476

AAP 100mm, 4" Resilient Check Valve Flanged Ball PN10 Table-D VFBC94D

AAP Check Valve Resilient Seat

$663.16
RRP $1,237.89
SAVE $574.73 (46%)
