Description

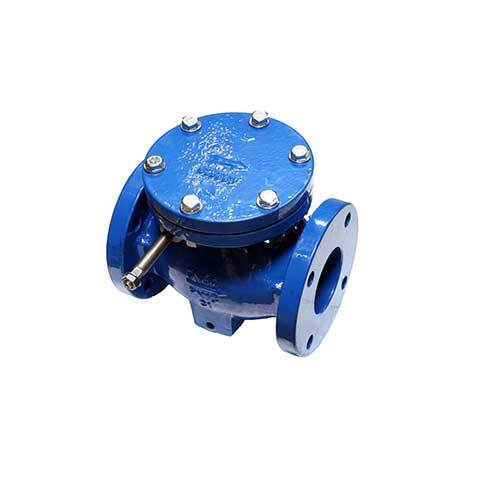

AAP Resilient Seat Flanged Swing Check Valve Table-E

Application:

  • Water Treatment Plant, can be fitted with counter lever and weight

 Specifications:

  • Flange - AS2129 T/E
  • Cold Working Pressure - 1600kPa
  • Max Working Temperature - 120°C

Material List:

  • Body - Cast Iron
  • Cover - Cast Iron
  • Side Plug - Brass
  • Hanger Pin - Stainless Steel
  • Hanger - Ductile Iron
  • Disc - Cast Iron
  • Disc Trim - EPDM
  • Body Trim - Bronze
  • Gasket - Graphite

 About Swing Check Valves:

  • Swing Check valves are used where the flow moves through the valve in approximately a straight line similar to that in a gate valve, which is commonly used in pipelines conveying liquids by gravity or pumping.
  • The check mechanism of the design incorporates a disc that swings on a hinge.

Specifications

  • AIMS SKU A0081444
  • Brand AAP
  • Model Number VRSSC50
  • Pipe Size (inch) 2
  • Pipe Size (mm) 50
  • Valve Length (l) 203
  • Height of handle from Valve (H) 121
  • Number of holes 4
  • Hole Diameter 18
  • Approx Kg/pc 14
  • Type Resilient Check Valve
  • Fitting Material Finish Cast Iron
SKU: A0081444 On Sale

AAP 50mm, 2" Resilient Check Valve Flanged Swing Table-E VRSSC50

AAP Check Valve Resilient Seat

$285.74
$380.99
