AAP 4" (100mm) Roll Groove Flange Adaptor - Galvanised GFA94G

Description

AAP Roll Groove Flange Adaptor - Galvanised

Material Specifications

Ductile Iron conforming to ASTM A-536 Grade 65-45-12

Hot Dipped Zinc galvanization

About Groove Piping:

Grooved piping system is reliable and faster to install than welding, threading, or Flanging.
This results in the lowest possible installed cost.
It can be adapted to suit standard pipe with cut grooves or standard and light wall pipe with rolled grooves.

Specifications

AIMS SKU A0080178

Brand AAP

Model Number GFA94G

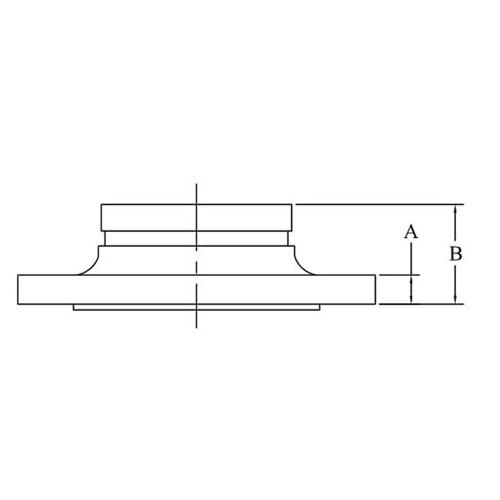

B 65

Thickness (A) 11.5

Pipe Size (inch) 4

Pipe Size (mm) 100

Holes Diameter 18

No. Of Holes 4

Approx. Kg/pc 3.5

Type Flange Adaptor
Pipe Fitting Connection Roll Groove
Fitting Material Finish Galvanised

Calculate Shipping

Resources

AAP S9 Roll Groove Fittings Catalogue Catalogue
