Description

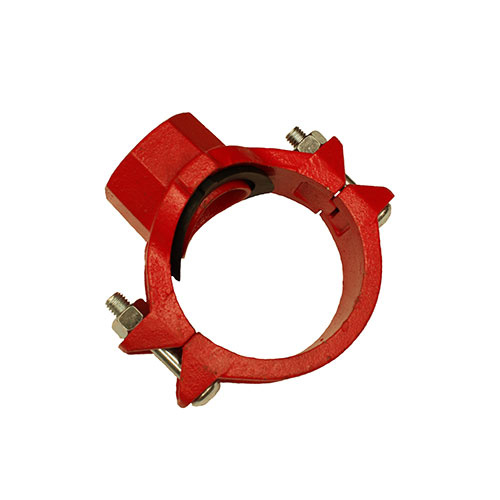

AAP Roll Groove Mechanical Tee - BSP

Material Specifications

  • Ductile Iron conforming to ASTM A-536 Grade 65-45-12
  • Provides additional screwed/outlet in the existing pipeline
  • Bolt & nut: Carbon steel
  • Gasket: EPDM

About Groove Piping:

  • Grooved piping system is reliable and faster to install than welding, threading, or Flanging.

  • This results in the lowest possible installed cost.

  • It can be adapted to suit standard pipe with cut grooves or standard and light wall pipe with rolled grooves.

Specifications

  • AIMS SKU A0080108
  • Brand AAP
  • Model Number GTM8050B

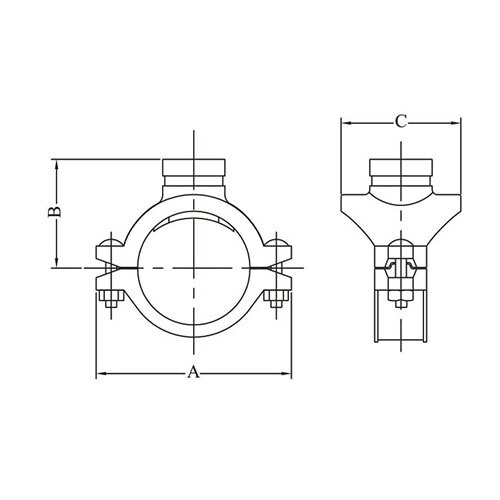

  • B 66.5
  • Length (A) 152
  • Pipe Size (inch) 3 x 2
  • Pipe Size (mm) 80 x 50
  • Approx. Kg/pc 2.4
  • Bolt Size 2 x M10 x 55
  • Hole Cutting Dimension (C ) mm 98
  • Type Mechanical Tee
  • Pipe Fitting Connection Roll Groove
SKU: A0080108 On Sale

AAP 3 x 2" (80 x 50mm) Roll Groove Mechanical Tee BSP GTM8050B

AAP Roll Groove Mechanical Tee

$18.65
$24.87
