AAP 1" (25mm) Roll Groove Rigid Coupling - Galvanised GC25G

Description

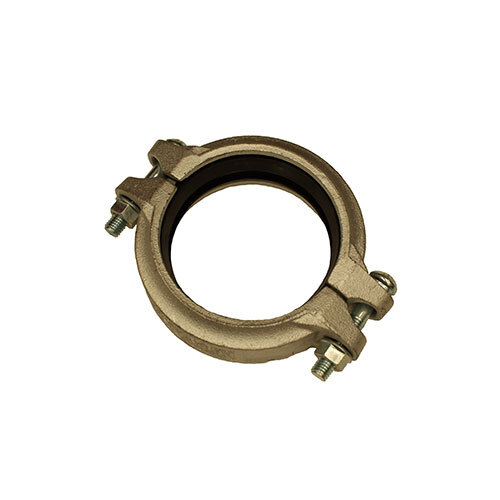

AAP Roll Groove Rigid Coupling - Galvanised

Material Specifications

Ductile Iron conforming to ASTM A-536 Grade 65-45-12

Hot Dipped Zinc galvanization

About Groove Piping:

Grooved piping system is reliable and faster to install than welding, threading, or Flanging.
This results in the lowest possible installed cost.
It can be adapted to suit standard pipe with cut grooves or standard and light wall pipe with rolled grooves.

Specifications

AIMS SKU A0080119

Brand AAP

Model Number GC25G

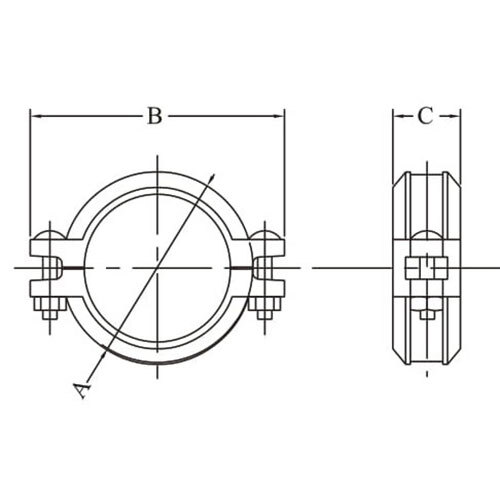

B 97

Pipe Size (inch) 1

Outer Diameter (A) mm 33.7

Pipe Size (mm) 25

Approx. Kg/pc 0.45

C 45

Bolt Size 2 x M10 x 40

Type Rigid Coupling
Pipe Fitting Connection Roll Groove
Fitting Material Finish Galvanised

Calculate Shipping

Resources

AAP S9 Roll Groove Fittings Catalogue Catalogue
