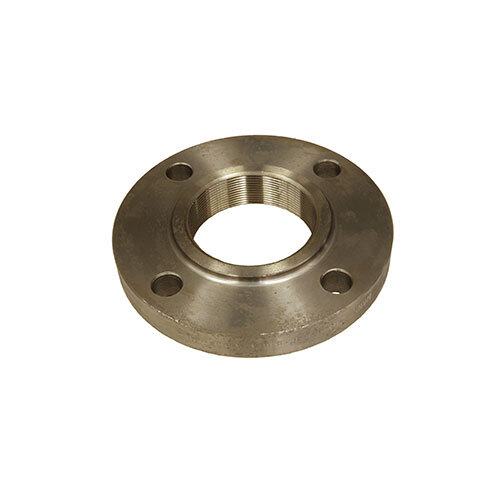

AAP Screwed Flange ANSI B16.5 C150 BSP

Description

Screwed Flanges

Specification:

ANSI B16.5 - Pipe Flanges and Flanged Fittings (American)

APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.

MARKING: All Flanges when possible will display a heat number, size, table, grade and dimensional standard

About Forged Steel Flanges:

Forged Steel flanges are commonly used and specified in the Oil, Gas, Petrochemical, and mining sectors, where pressure, temperature and safety considerations often specify the ANSI B16.5, ASME B16.47, or BS4504 standards.
The manufacturing method involves the hot forging of suitable steels prior to ?nal machining

Specifications

AIMS SKU A0078885

Brand AAP

Model Number PFSB25

Pipe Size (inch) 1"

Approx. Weight kg/pc 0.9

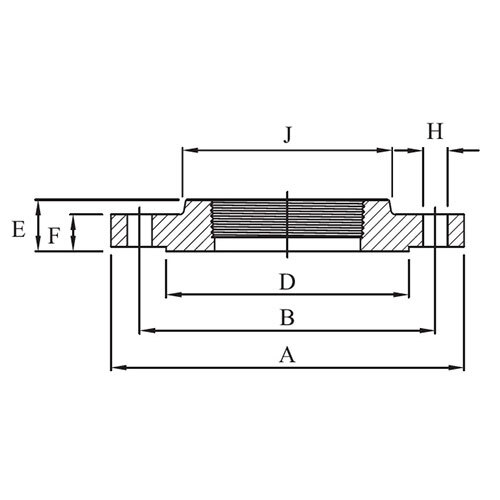

Flange Outside Diameter (A) 108

Flange Thickness (F) 14.3

Flange Raised Face Diameter (D) 50.9

Flange Raised Faced Thickness 1.6

Drilling Bolt Circle Diameter (B) 79.3

Drilling Holes Diameter (H) 16

Drilling No. Of Holes 4

Drilling Bolt Size 1/2"

Hub Diameter (J) 49.2

Slip-on Length (C) 17.5

Type Screwed Flange
Fitting Schedule/class C150
Fitting Thread Form BSP
