Description

Screwed Flanges

  • Standard: BS4504 - Circular Flanges for Pipe, Valves and Fittings (PN designated) - (now BS EN1092) (European)
  • APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • MARKING: All Flanges when possible will display a heat number, size, table, grade and dimensional standard



About Forged Steel Flanges:

  • Forged Steel flanges are commonly used and specified in the Oil, Gas, Petrochemical, and mining sectors, where pressure, temperature, and safety considerations often specify the ANSI B16.5, ASME B16.47, or BS4504 standards.
  • The manufacturing method involves the hot forging of suitable steels prior to ?nal machining

Specifications

  • AIMS SKU A0079063
  • Brand AAP
  • Model Number SFPN16B25
  • Pipe Size (inch) 1"
  • Approx. Weight kg/pc 1

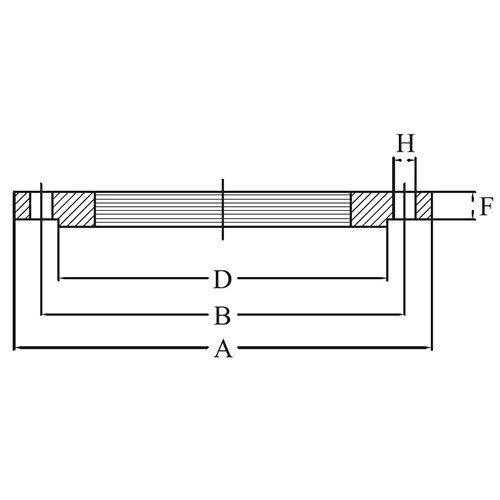

  • Flange Outside Diameter (A) 115
  • Flange Thickness (F) 15
  • Flange Raised Face Diameter (D) 69
  • Drilling Bolt Circle Diameter (B) 85
  • Drilling Holes Diameter (H) 14
  • Drilling No. Of Holes 4
  • Drilling Bolt Size M12
  • Raised Face Thickness 3
  • Type Screwed Flange
SKU: A0079063

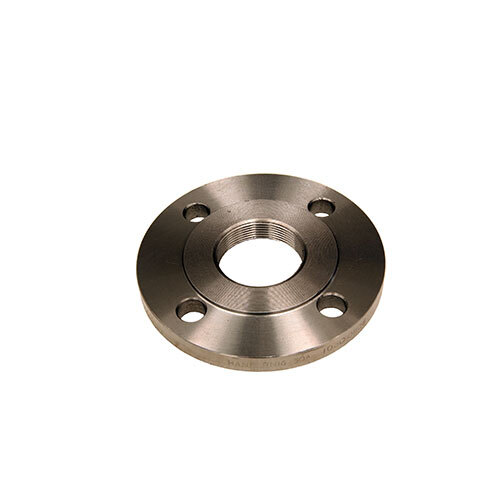

AAP 1" Screwed Flange BSP Thread BS 4504 PN16 SFPN16B25

AAP - Screwed Forged Steel flange

$12.40
RRP $26.69
SAVE $14.29 (54%)
