Description

Screwed Flanges

  • Standard: BS10 - specification for Flanges and Bolting for Pipes, Valves, and Fittings (British)
  • APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • MARKING: All Flanges when possible will display a heat number, size, table, grade and dimensional standard



About Forged Steel Flanges

  • Forged Steel flanges are commonly used and specified in the Oil, Gas, Petrochemical, and mining sectors, where pressure, temperature and safety considerations often specify the ANSI B16.5, ASME B16.47, or BS4504 standards.
  • The manufacturing method involves the hot forging of suitable steels prior to ?nal machining

Specifications

  • AIMS SKU A0081697
  • Brand AAP
  • Model Number SFE15G
  • Pipe Size (inch) 1/2"
  • Approx. Weight kg/pc 0.34
  • Flange Outside Diameter (A) 95.3
  • Flange Thickness (E) 6.3
  • Drilling Bolt Circle Diameter (B) 66.7
  • Drilling Holes Diameter (H) 14
  • Drilling No. Of Holes 4
  • Drilling Bolt Size M12
  • Hub Diameter (J) 38.1
  • Length Thru Hub (G) 15.8
  • Radius Of Boss 6.3
  • F 9.5
  • Type Screwed Forged Steel Flange
SKU: A0081697

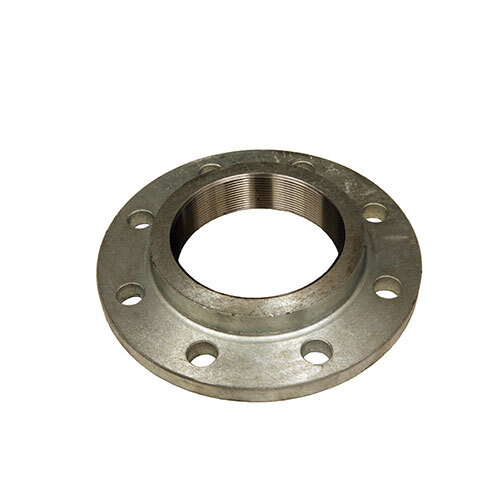

AAP 1/2" Gal Screwed Forged Steel Plate Flange BS10 Table-E SFE15G

AAP - Screwed Forged Steel flange

$9.13
RRP $19.66
SAVE $10.53 (54%)
