Description

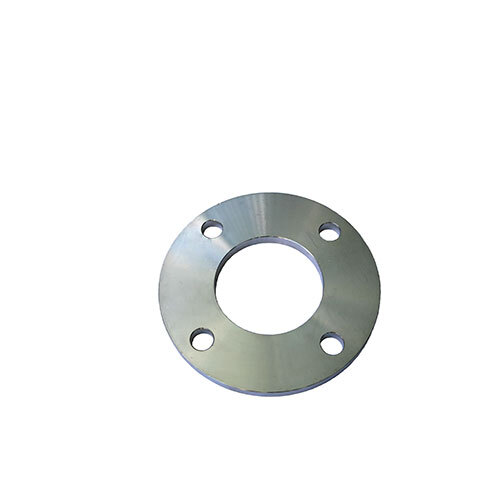

***Number of Holes may vary. The image is for illustration purposes only.***

AAP Slip On Flanges 316/316L SS 'Table E'

  • A Slip-On flange is used to connect two fillet welds.
  • Provide sufficient strength.
  • Prevents leakage.
  • Grade: 316 Stainless Steel.
  • Standard: BS10 Table E.
  • Pressure Rating: 13.87Bar.

Specifications

  • AIMS SKU A0080880
  • Brand AAP
  • Model Number SSFSE31625
  • Pipe Size (inch) 1

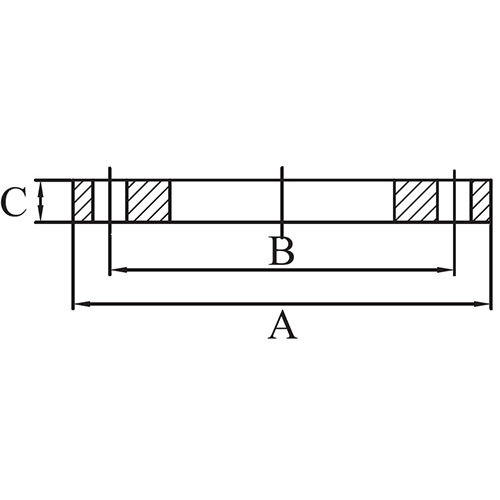

  • Outer Diameter (A) mm 115
  • Pipe Size (mm) 25
  • Holes Diameter 14
  • No. Of Holes 4
  • Approx. Kg/pc 0.5
  • Thickness 10.6
  • Circle Diameter (B) 83
  • Bolt Size M12
  • Type Slip On Flange
  • Fitting Material 316 Stainless Steel
SKU: A0080880 On Sale

AAP 1", 25mm Slip On Flanges 316/316L SS Table-E SSFSE31625

AAP - Slip On Fflanges

$19.33
$25.77
