Description

Slip-on Plate Flanges

  • Standard: AS2129 - Flanges for Pipes, Valves, and Fittings (Australian)
    • *AS2129 is a replica of BS10 but is stated in mm rather than inches. In some sizes, bolt holes are slightly larger to give better clearance
  • APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • MARKING: All Flanges when possible will display a heat number, size, table, grade, and dimensional standard



About Plate Steel Flanges:

  • Plate flanges are mainly used for light-duty, lower pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
  • The manufacturing method involves cFitting and machining from plate steel

Specifications

  • AIMS SKU A0078752
  • Brand AAP
  • Model Number SFPH15
  • Pipe Size (inch) 1/2"
  • Approx. Weight kg/pc 0.9

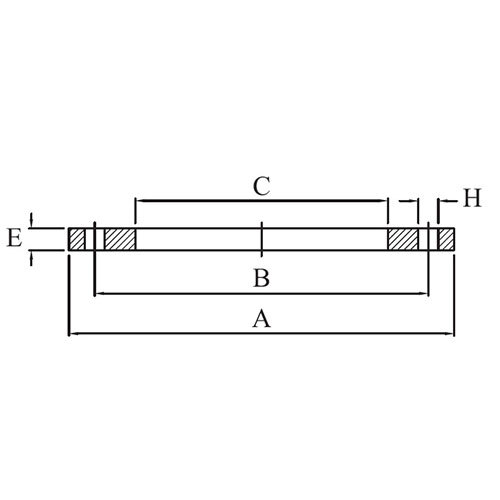

  • Flange Outside Diameter (A) 114
  • Flange Thickness (E) 13
  • Drilling Bolt Circle Diameter (B) 83
  • Drilling No. Of Holes 4
  • Drilling Bolt Size M16
  • Bore Slip-on Socket Length (C) 22
  • Type Slip-on Weld Plate Flange
SKU: A0078752

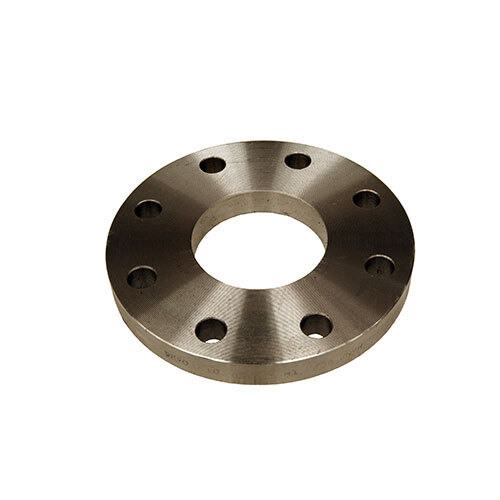

AAP 1/2" Slip-On Plate Flange AS2129 Table-H SFPH15

AAP - Slip-On Plate flange

$9.17
RRP $19.75
SAVE $10.58 (54%)
