Description

Slip-On Plate Flanges

Specification:

  • AS2129 - Flanges for Pipes, Valves and Fittings (Australian)
    • **AS2129 is a replica of BS10 but is stated in mm rather than inches. In some sizes bolt holes are slightly larger to give better clearance
  • APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • MARKING: All Flanges when possible will display a heat number, size, table, grade and dimensional standard



About Plate Steel Flanges:

  • Plate flanges are mainly used for light-duty, lower pressure or non-critical applications, commonly referring to AS2129, BS10 or AS4087 standards.
  • The manufacturing method involves cFitting and machining from plate steel

Specifications

  • AIMS SKU A0078733
  • Brand AAP
  • Model Number SFPD94
  • Pipe Size (inch) 4"
  • Approx. Weight kg/pc 2.3

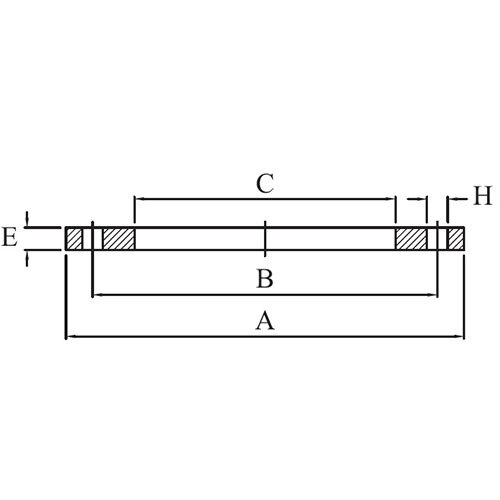

  • Flange Outside Diameter (A) 216
  • Flange Thickness (E) 12
  • Drilling Bolt Circle Diameter (B) 178
  • Drilling Holes Diameter (H) 18
  • Drilling No. Of Holes 4
  • Drilling Bolt Size M16
  • Bore Slip-on Socket Length (C) 116
  • Type Slip-on Weld Plate Flange
SKU: A0078733 On Sale

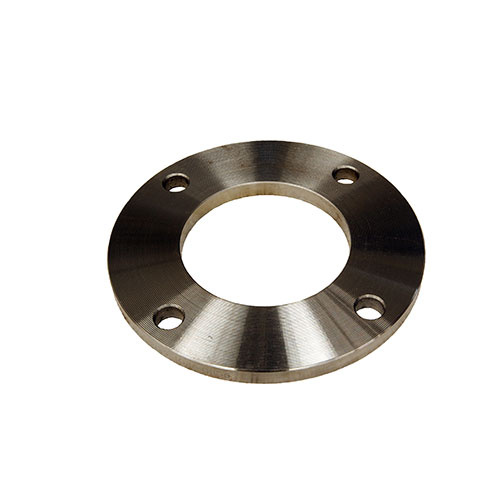

AAP 4" Slip-on Weld Steel Plate Flange AS2129 Table-D SFPD94

AAP - Slip-on Weld Steel flange

$15.56
$20.74
