Description

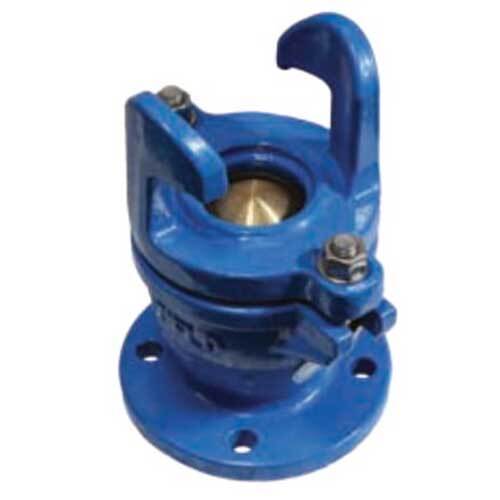

Spring Hydrant Valve

  • Certifed to AS4020 - Suitable for Drinking Water
  • AAP Standards Mark License - SMKP21360
  • AS 3952:2002 Water supply - Spring hydrant valve for waterworks purposes
  • WSAA Product Appraisal Report 12/03

Specifications:

  • Max. Working Temperature - 40°C
  • Cold Working Pressure - 1600 kPa
  • Design - AS 3952
  • Flange (Table C) - AS 4087
  • Seat Infiltration Resistance - 55kPa (vacuum)
  • Hydraulic Test - AS 3952

Material List

  • Yoke - Ductile Iron
  • Cover - Rubber
  • Seat - Rubber
  • Dome - Copper Alloy
  • Spring - 304 Stainless Steel
  • Body - Ductile Iron
  • Fastener - 316 Stainless
  • Steel RubberEPDM

Specifications

  • AIMS SKU A0081693
  • Brand AAP
  • Model Number VSH80

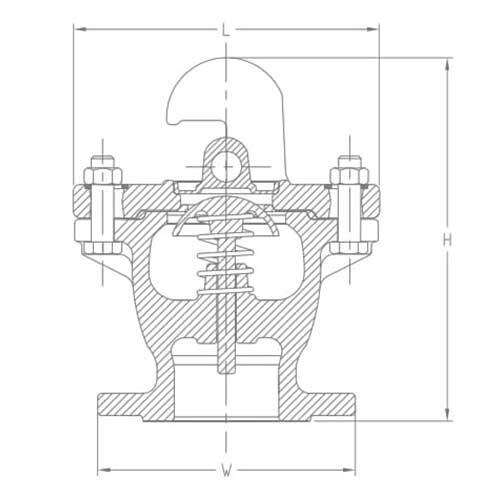

  • Size (inch) 3
  • Approx. Kg/pc 12.5
  • Hole Diameter 18
  • H 268
  • W 185
  • L 218
  • Number Of Hole 4
  • Type Spring Hydrant Valve
SKU: A0081693

AAP 80mm, 3" Spring Hydrant Valve Table-C VSH80

AAP Spring Valve

$271.35
RRP $506.51
SAVE $235.16 (46%)
