AAP Stainless Gate Valve-Retainer Type Table-D

Description

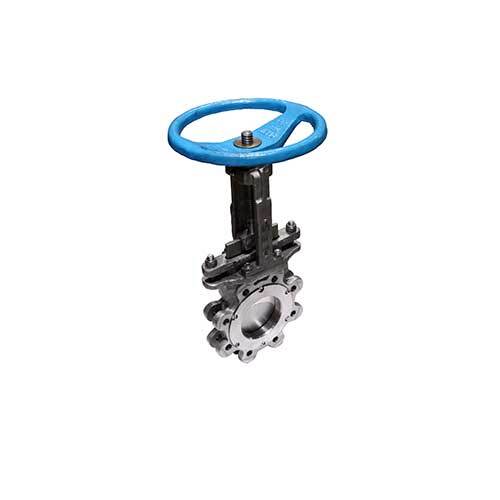

Stainless Steel Knife Gate Valve Retainer Type (Table D)

Stainless Steel Knife gate valve is designed for inline service. Should the valve be used on a dead-end application asupport flange should be used.
AAP Can also supply the following seats - EPDM, PTFE, Stainless Steel Metal Seats, Viton, Ceramic and Polyurethane

Specifications
Valve Design	MSS SP-81
Flange	AS2129
Cold Working Pressure	1034kPa
MAX Working Temperature	100°C

Material List
PART	MATERIAL
Body	CF8M
Gland Packing	Braided PTFE
Gland	CF8M
Gate	316 Stainless Steel
Yoke	CF8
Hand Wheel	Cast Steel
Stem	304 Stainless Steel
Clevis	CF8
Grease Nipple	304 Stainless Steel
Bearing Housing	CF8
Retainer	CF8M
Retainer Screw	304 Stainless Steel
Seat	NBR

Specifications

AIMS SKU A0081361

Brand AAP

Model Number VKGRS100D

Pipe Size (inch) 4

Pipe Size (mm) 100

Approx. Kg/pc 17.5

Bolt Size M16

Height of handle from Valve (H) 635

Valve Handle Length (W) 254

Valve Length 51

Number of Bolts 4

Type Stainless Steel Gate Valve
Fitting Material Finish Stainless Steel
