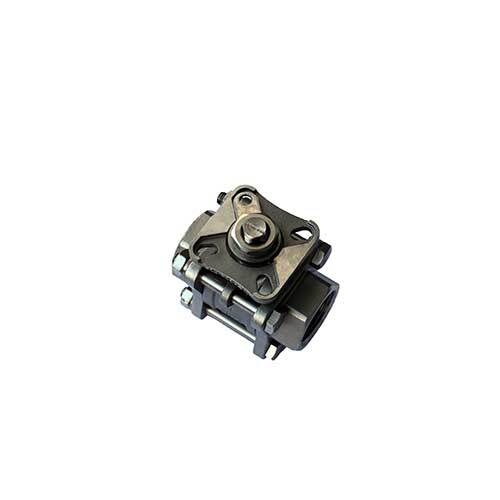

AAP Stainless Steel Ball Valve 3-PCE Actuator Mounting Pad

Description

AAP Stainless Steel Ball Valve 3-PCE Actuator Mounting Pad

For air, water, Hot/Cold corrosive fluid in harsh environments

Specifications
Thread	AS1722.1
Max Working Temperature	180°C
Cold Working Pressure	6895kPa

MATERIAL LISTS
PART	MATERIAL
Body	CF8M
Ball	316 Stainless Steel
Seat	Te?on (PTFE)
Stem	316 Stainless Steel
Lever	316 Stainless Steel with Locking Device

About Ball Valves:

A ball valve is a valve with a spherical ball with an orifice straight through mounted between teflon seats in either a screwed or flanged body in various materials.
When the orifice is in line with both ends of the valve flow will occur.
When the valve is closed the orifice is perpendicular to the ends of the valve.
The lever/handle will be in line with the orifice position, an indication of the valve position.

Specifications

AIMS SKU A0080622

Brand AAP

Model Number SS3BV15MP

Pipe Size (inch) 1/2

Pipe Size (mm) 15

Approx. Kg/pc 0.44

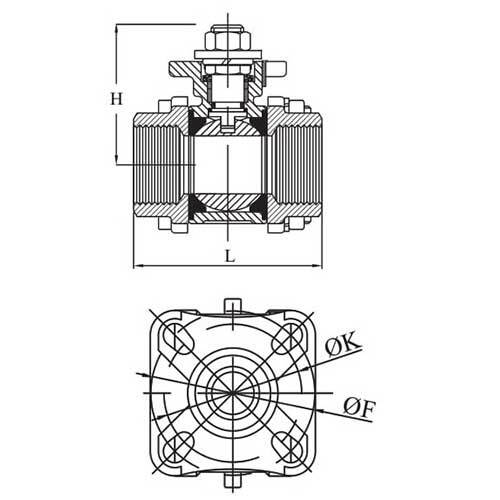

Valve Length (l) 55

Height of handle from Valve (H) 58.8

Øk 42

Øf 42

Type Stainless Steel Ball Valve
Fitting Material Finish Stainless Steel
