Description

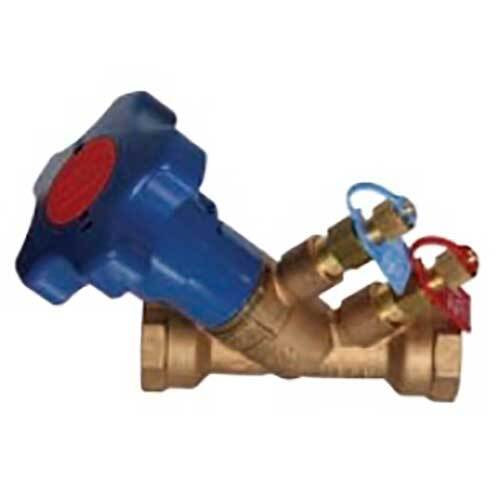

Variable Balancing Valve

  • Variable ori?ce bronze double regulating valve

Specifications:

Thread F/F ISO 228
Design BS7350
Working Pressure 2500kPa up to 80°C
2000kPa up to 100°C
Working Temperature ** -10°C - 130°C

** Below 0°C only for water with added anti-freezing ?uids

** Over 100°C only for water with additives avoiding boiling

Material List

PART MATERIAL
Body Bronze
Balancing Cone DR   Brass
Gasket Disc PTFE
Disc O-ring EPDM   Perox
Disc stem DR   Brass
Stem O-ring EPDM   Perox
Union DR   Brass
Stem Brass
Bonnet DR   Brass
Stop spring ring Spring   Steel
Screw Screw
Handwheel ABS   (blue)
Nut Steel
Test point / plug DR   Brass

Specifications

  • AIMS SKU A0081690
  • Brand AAP
  • Model Number BAL15
  • Size (inch) 1/2
  • B 17.5
  • Approx. Kg/pc 0.5
  • H 90
  • L 90
  • V 70
  • Flow Range (l/s) 0.062 - 0.148
  • Type Balancing Valve
SKU: A0081690 On Sale

AAP 15mm, 1/2" Variable Balancing Valve BAL15

AAP Balancing Valve

$79.70
$106.27
