Description

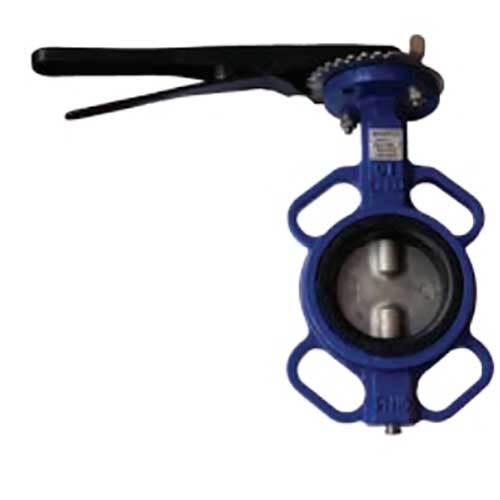

AAP Viton Butterfly Valve w/ Stainless Steel Disc

  •  Resilient seat Butterfly Valves are used in a wide flange of industries including HVAC, Gas, Petrochemical, Pulp & Paper, Water & Wastewater Treatment, Brewing, Food processing, mining, Textile, and General Industry.
  • They are compact and give bubble tight shut off as well as having good regulating capabilities.

 Wafer Butterfly Style

  • The body design is such that it can be used with most international Flangesincluding AS2129, BS10, ANSI, DIN & JIS Standards in sizes 50mm to 300mm.
  • The wafer style is designed for inline service and relies on a flange either side of the valve to secure in the pipeline.
  • *AAP 50mm to 300mm Wafer Butterfly Style EPDM version is Australian Standard Watermark (Certificate No: WMKA25460) approved and using Akzo Nobel Paint




Materials (SS Butterfly)

PART

MATERIAL

Body

CF8M

Handle

SS304

Stem

SS416

Hub Shaft

SS416

Bushing

PTFE

O-Ring

EPDM

Specifications

  • AIMS SKU A0081150
  • Brand AAP
  • Model Number VWV50
  • Pipe Size (inch) 2
  • Pipe Size (mm) 50
  • Approx. Kg/pc 3.09

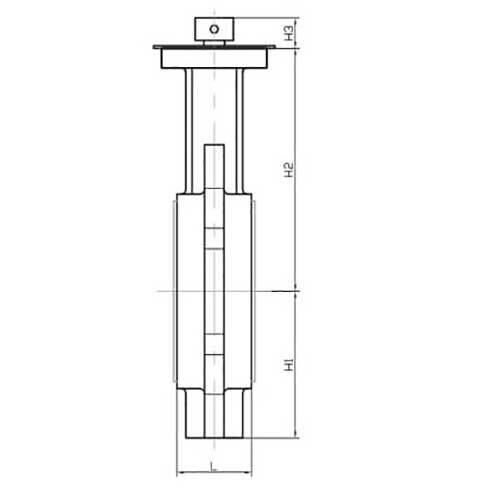

  • F 14.1
  • D 125
  • E 70
  • K 11
  • Valve Length 42.04
  • HI 70
  • H2 140
  • H3 31.12
  • 4-d1 10
  • N-d2 4 - 19
  • Type Wafer Butterfly Valve
  • Body Cast Iron
  • DISC SS316
  • Seat Material Viton
SKU: A0081150 On Sale

AAP 2" Viton Wafer Butterfly Valve w/ Stainless Steel Disc VWV50

AAP Wafer Butterfly Valve

$228.04
$304.05
