Description

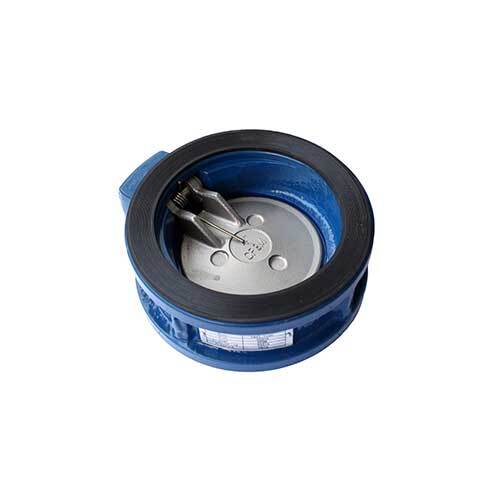

AAP Wafer Check Valve - Single Disc

Application:

  • Water, Air, Oil, Gas

Specifications:

  • Flange - AS2129 T/E
  • Cold Working Pressure - 1000kPa
  • Max Working Temperature - 120°C

Material Lists:

  • Body - Cast Iron
  • Spring - 316 Stainless Steel
  • Disc - 316 Stainless Steel
  • Seat -EPDM
  • Flange Gasket - NBR
  • Axle - 2Cr13

Specifications

  • AIMS SKU A0081249
  • Brand AAP
  • Model Number VWSC50
  • Pipe Size (inch) 2
  • Pipe Size (mm) 50

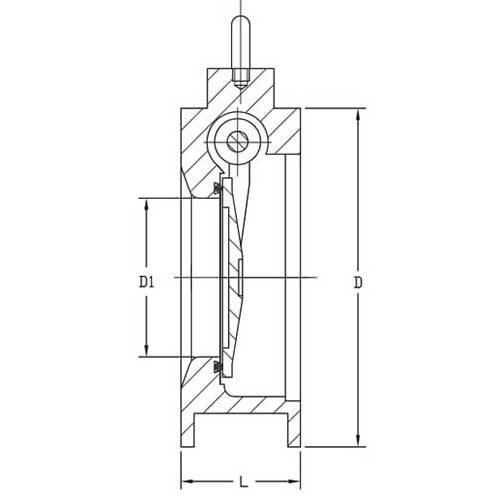

  • Valve Length (l) 44.5
  • Valve Diameter (D) 96
  • Approx Kg/pc 1.4
  • Valve Inner Diameter (d1) 33.3
  • Type Wafer Check Valve
  • Fitting Material Finish Cast Iron
SKU: A0081249 On Sale

AAP 50mm, 2" Wafer Check Valve - Single Disc VWSC50

AAP Wafer Check Valve Single Disc

$62.78
$83.70
