Description

Aetna Double Pitch Idler Sprocket

  • Double Pitch Chain Idler.

All About Sprocket Idler

  • These sprocket idlers are designed for extended pitch chains.
  • They are installed with standard 1/2" or 5/8" bolts and include accurately contoured hardened teeth to resist wear and damage to the chain.
  • Aetna idlers are compact and easy to install and built for long maintenance-free service life.
  • Typical applications include gathering chains on corn heads and other harvesting equipment.

Advantages

  • Case hardened teeth prolong chain and idler life.
  • Accurately contoured teeth from heavy-gauge steel.
  • Over-size, factory-packed lubricant chamber assures maximum life and operating efficiency without troublesome relubrication.
  • Bearing races are hardened to resist wear, outers and inners are accurately formed for smooth running
  • Aetna's self-contouring, free-running, self-wiping seal provides positive contact under all conditions of misalignment.
  • Full ball complement for high durability.

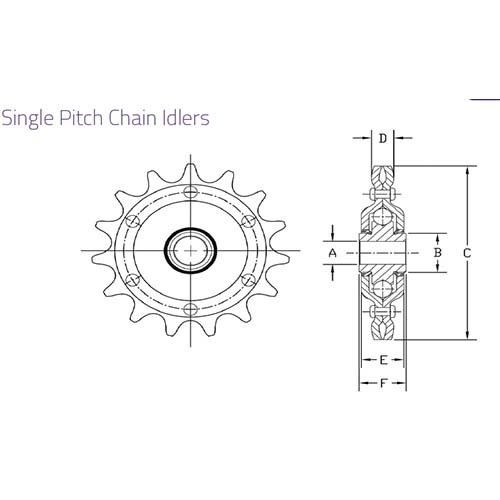

Specifications

  • AIMS SKU A0150895
  • Brand Aetna
  • Model Number AG2416-B
  • Type Idler Sprocket
  • Pitch (mm) 31.75
  • Roller Diameter (mm) 10.16
  • E (inch) 51/64
  • D (inch) 11/32
  • Roller Diameter (inch) 0.4
  • Chain No 2050
  • Pitch 1-1/4
  • Weight (lbs) 0.75
  • B (inch) 7/8
  • Inside Diameter (inch) 7/8
  • D (mm) 8.731
  • b (mm) 22.225
  • E (mm) 20.24
  • F (mm) 23.545
  • A (mm) 16.332/16.484
  • f (inch) 0.927
  • a (inch) .643 / .649
  • C (inch) 3-27/32
  • C (mm) 97.631
  • Teeth 9
  • Weight (kg) 0.34
  • Item Type Double Pitch Chain Idler - Sprocket Idler
SKU: A0150895

Aetna 1-1/4" Double Pitch 9 Tooth 7/8" ID Idler Sprocket

Aetna Double Pitch Idler Sprocket

$74.01
