Description

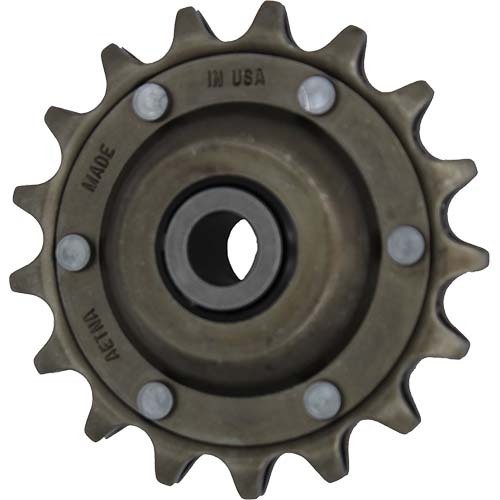

Aetna Single Pitch Idler Sprocket

  • Single Pitch Chain Idler.

All About Sprocket Idler

  • These sprocket idlers are designed for extended pitch chains. These Aetna idlers are manufactured with heavier gauge steel for greater life and load-carrying capacity.
  • They are installed with standard 1/2" or 5/8" bolts and include accurately contoured hardened teeth to resist wear and damage to the chain.
  • Aetna idlers are compact and easy to install and built for long maintenance-free service life.
  • Typical applications include gathering chains on corn heads and other harvesting equipment.

Advantages

  • Case hardened teeth prolong chain and idler life.
  • Accurately contoured teeth from heavy-gauge steel
  • Over-size, factory-packed lubricant chamber assures maximum life and operating efficiency without troublesome relubrication.
  • Bearing races are hardened to resist wear, outers and inners are accurately formed for smooth running.
  • Aetna's self-contouring, free-running, self-wiping seal provides positive contact under all conditions of misalignment.
  • Full ball complement for high durability.

Specifications

  • AIMS SKU A0150893
  • Brand Aetna
  • Model Number AG2318-S
  • Type Idler Sprocket
  • b (mm) 25.4
  • Roller Diameter (mm) 7.924/7.772
  • E (inch) 45/64
  • D (inch) 15/64
  • Roller Diameter (inch) .312 / .306
  • Chain No 40 or 41
  • Pitch 1/2
  • Weight (lbs) 0.42
  • B (inch) 1
  • Inside Diameter (mm) 16
  • D (mm) 5.953
  • E (mm) 17.859
  • F (mm) 19.05
  • A (mm) 16.322/16.484
  • f (inch) 0.75
  • a (inch) .643 /.649
  • C (inch) 3-1/16
  • C (mm) 77.787
  • Teeth 18
  • Weight (kg) 0.19
  • Item Type Single Pitch Chain Idlers
SKU: A0150893

Aetna 1/2" Pitch 18 Tooth x 16mm ID Single Pitch Idler Sprocket

Aetna Single Pitch Idler Sprocket - AG2318-S

$65.84
