Description

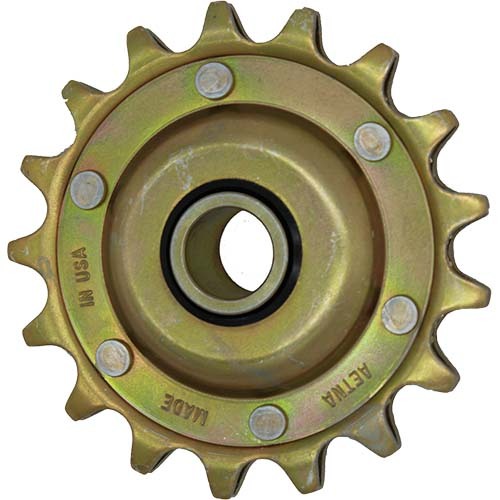

Aetna Single Pitch Idler Sprocket

  • Single Pitch Chain Idler.

All About Sprocket Idler

  • These sprocket idlers are designed for extended pitch chains. These Aetna idlers are manufactured with heavier gauge steel for greater life and load-carrying capacity.
  • They are installed with standard 1/2" or 5/8" bolts and include accurately contoured hardened teeth to resist wear and damage to the chain.
  • Aetna idlers are compact and easy to install and built for long maintenance-free service life.
  • Typical applications include gathering chains on corn heads and other harvesting equipment.

Advantages

  • Case hardened teeth prolong chain and idler life.
  • Accurately contoured teeth from heavy-gauge steel
  • Over-size, factory-packed lubricant chamber assures maximum life and operating efficiency without troublesome relubrication.
  • Bearing races are hardened to resist wear, outers and inners are accurately formed for smooth running.
  • Aetna's self-contouring, free-running, self-wiping seal provides positive contact under all conditions of misalignment.
  • Full ball complement for high durability.

Specifications

  • AIMS SKU A0150894
  • Brand Aetna
  • Model Number AG2416-AP
  • Type Idler Sprocket
  • b (mm) 22.225
  • Roller Diameter (mm) 10.16
  • E (inch) 51/64
  • D (inch) 11/32
  • Roller Diameter (inch) 0.4
  • Chain No 50
  • Pitch 5/8
  • Weight (lbs) 0.81
  • B (inch) 7/8
  • Inside Diameter (inch) 1/2
  • D (mm) 8.731
  • E (mm) 20.24
  • F (mm) 23.5458
  • A (mm) 13.106/13.258
  • f (inch) 1-1/8
  • a (inch) .516/.522
  • C (inch) 3-5/8
  • C (mm) 92.075
  • Teeth 17
  • Weight (kg) 0.349
  • Item Type Single Pitch Chain Idlers
SKU: A0150894

Aetna 5/8" Pitch 17 Tooth x 1/2" ID x 1-1/8" Hub Width Idler Sprocket

Aetna Single Pitch Idler Sprocket - AG2416-AP

$82.63
