Description

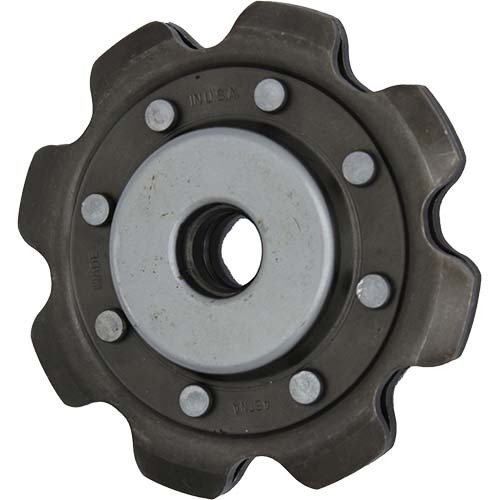

Aetna Heavy Duty Double Pitch Idler Sprocket

  • Heavy Duty Double Pitch Chain Idler.

All About Sprocket Idler

  • These sprocket idlers are designed for agricultural detachable link chains.
  • They are installed with standard 1/2" or 5/8" bolts and include accurately contoured hardened teeth to resist wear and damage to the chain.
  • Aetna idlers are compact and easy to install and built for long maintenance-free service life.

Advantages

  • Case hardened teeth prolong chain and idler life.
  • Accurately contoured teeth from heavy-gauge steel
  • Over-size, factory-packed lubricant chamber assures maximum life and operating efficiency without troublesome relubrication.
  • Bearing races are hardened to resist wear, outers and inners are accurately formed for smooth running.
  • Aetna's self-contouring, free-running, self-wiping seal provides positive contact under all conditions of misalignment.
  • Full ball complement for high durability.

Specifications

  • AIMS SKU A0150900
  • Brand Aetna
  • Model Number AG2427-1AF
  • Type Idler Sprocket
  • Pitch (mm) 38.1
  • Roller Diameter (mm) 11.906
  • E (inch) 31/32
  • D (inch) 7/16
  • Roller Diameter (inch) 15/32
  • Chain No 2060
  • Pitch 1-1/2
  • Weight (lbs) 1.46
  • B (inch) 2-5/64
  • Inside Diameter (inch) 5/8
  • D (mm) 11.112
  • b (mm) 52.784
  • E (mm) 24.606
  • F (mm) 0
  • A (mm) 16.332/16.484
  • a (inch) .643/.649
  • C (inch) 4-7/32
  • C (mm) 107.156
  • Teeth 8
  • Weight (kg) 0.662
  • Item Type Heavy Duty Double Pitch Chain Idler
SKU: A0150900

Aetna AG2427-1AF 1-1/2" Pitch 8T 5/8" ID Heavy Duty Double Idler Sprocket

Aetna Heavy Duty Double Pitch Idler Sprocket

$195.50
