Description

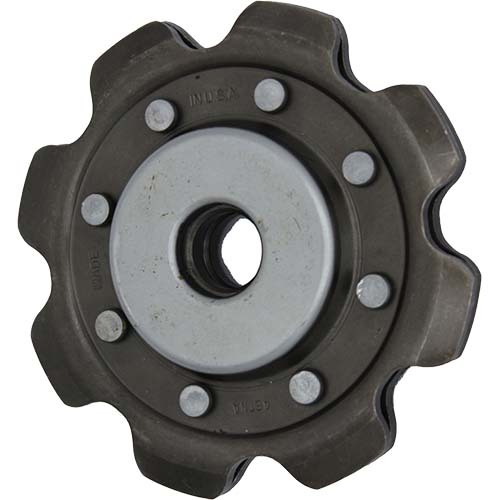

Aetna Heavy Duty Double Pitch Idler Sprocket

  • Heavy Duty Double Pitch Chain Idler.

All About Sprocket Idler

  • These sprocket idlers are designed for agricultural detachable link chains.
  • They are installed with standard 1/2" or 5/8" bolts and include accurately contoured hardened teeth to resist wear and damage to the chain.
  • Aetna idlers are compact and easy to install and built for long maintenance-free service life.

Advantages

  • Case hardened teeth prolong chain and idler life.
  • Accurately contoured teeth from heavy-gauge steel
  • Over-size, factory-packed lubricant chamber assures maximum life and operating efficiency without troublesome relubrication.
  • Bearing races are hardened to resist wear, outers and inners are accurately formed for smooth running.
  • Aetna's self-contouring, free-running, self-wiping seal provides positive contact under all conditions of misalignment.
  • Full ball complement for high durability.

Specifications

  • AIMS SKU A0150901
  • Brand Aetna
  • Model Number AG2565-2AF
  • Type Idler Sprocket
  • Pitch (mm) 41.402
  • Roller Diameter (mm) 16.668

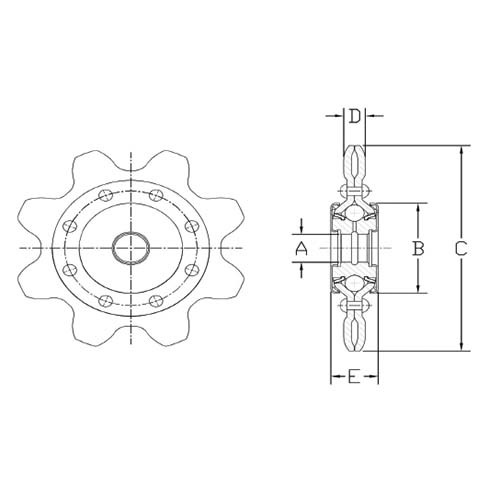

  • E (inch) 1-3/16
  • D (inch) 7/16
  • Roller Diameter (inch) 21/32
  • Chain No 555
  • Pitch 1.63
  • Weight (lbs) 1.69
  • B (inch) 2-5/64
  • Inside Diameter (inch) 5/8
  • D (mm) 11.112
  • b (mm) 52.784
  • E (mm) 30.162
  • F (mm) 0
  • A (mm) 16.332/16.484
  • a (inch) .643/.649
  • C (inch) 4-3/4
  • C (mm) 120.65
  • Teeth 8
  • Weight (kg) 0.776
  • Item Type Heavy Duty Double Pitch Chain Idler
SKU: A0150901

Aetna AG2565-2AF 41.4mm Pitch 8T 5/8" ID Heavy Duty Double Idler Sprocket

Aetna Heavy Duty Double Pitch Idler Sprocket

$91.49
