Specifications

AIMS SKU A0158650
Brand Agri-Power
Model Number 08B-1/AGRI-POWER
Chain Number 08B
Average Tensile Strength (kN) 19.4
Chain Pitch 1/2 in
Chain Length 10 ft

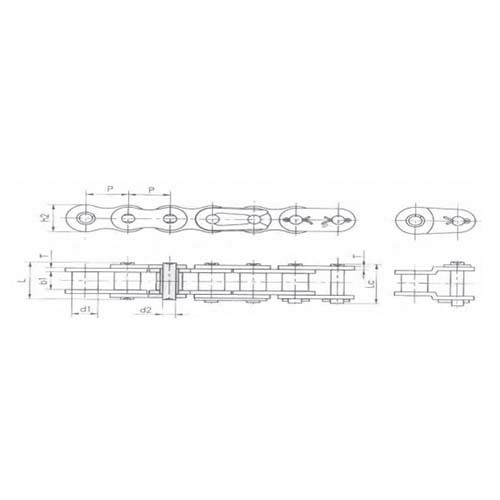

Pitch P (mm) 12.7
Roller Diameter D1 Max (mm) 8.51
Width Between Inner Plates b1 min (mm) 7.75
Pin Diameter d2 max (mm) 4.45
Pin Length L Max (mm) 16.7
Pin Length Lc Max (mm) 18.2
Inner Plate Depth h2 max (mm) 11.8
Plate Thickness T max (mm) 1.6
Ultimate Tensile Strength (kN) 18
Weight Per Meter (kg/m) 0.69
• Type Roller Chain
• System of Measurement British (BS)
• Strand Simplex
