***Lead time is 4-6 Weeks from receipt of the order. Contact AIMS for further assistance.***

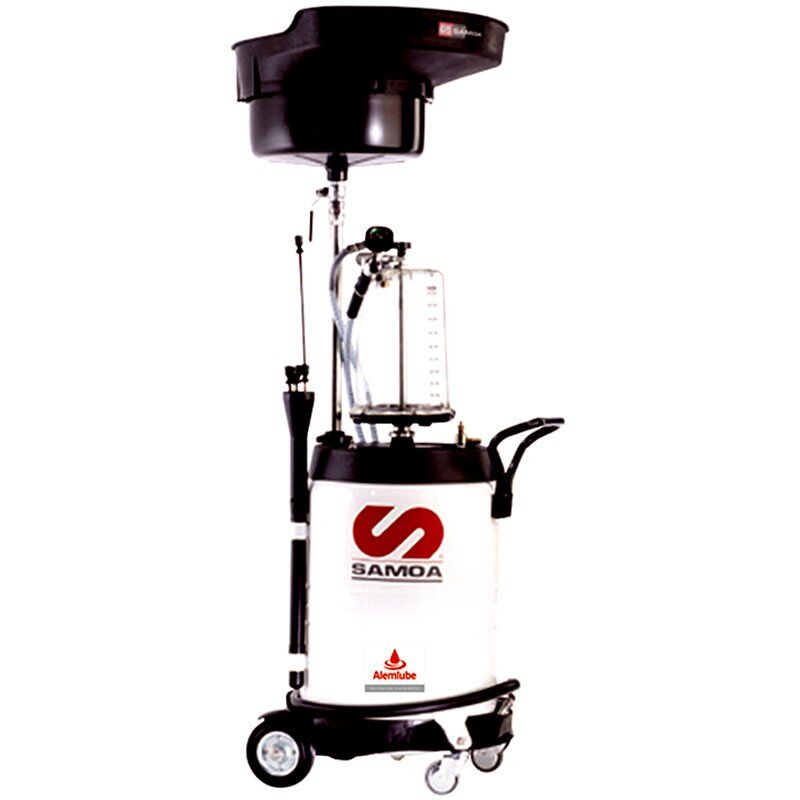

Alemlube 100L,20L,10L Waste Oil Drainer/Evacuator

• Complete with a 20L bowl capacity & 10L clear bowl reservoir for viewing and measuring
• Includes a 10 litre transparent chamber that can be used as a vacuum reservoir and allows an immediate inspection of the extracted waste oil
• Waste oil suction is carried out by an air operated vacuum pump with no moving and no wear parts, using a suction lance or adapter inserted into the motor oil dip-stick tube
• Gravity collection is carried out using a 20 litre capacity, height adjustable and oversized, collection bowl with an anti-splash grid
• Once the vacuum inside their tank is created, then these units can be used as autonomous units, disconnected from the air supply
• The units are discharged through a discharge hose, pressurising the unit at 3.5 psi with a tyre inflator; includes a safety valve that prevents over pressure
• Suction time with HOT oil (70/80c) & probe diameter 6mm, is 1.5-2 litres per min
• Suction hose: 2m; Drain hose: 2m
• Working pressure vacuum / discharge: 100-145psi / 70psi
