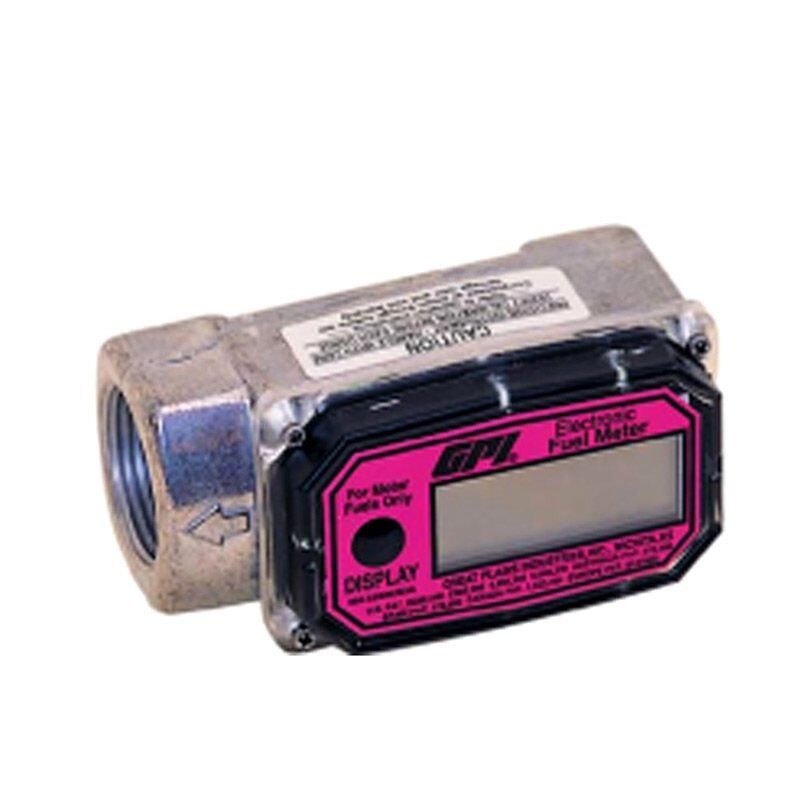

Alemlube Digital Inline Meter

  • For use with diesel only on gravity feed or electric transfer pumps
  • Turbine type meter
  • Flow range: 10 L/min to 100 L/min
  • 1” BSPT(f) inlet/outlet
  • Maximum working pressure of 300psi (21bar)
  • Maximum batch and cumulative total: 9,999L
  • Accurate to ±5%
  • Repeatability: ±0.5%
  • Power: Two alkaline AAA batteries (Average 5 year use)
  • Operating temperature range of between -10ºC to +50ºC
  • Housing: Aluminium
  • Factory calibrated (not field calibratable)
  • Weight: 0.9kg

Specifications

  • AIMS SKU A0047589
  • Brand Alemlube
  • Model Number 01A12LM
  • Barcode Number 9323627007636
  • Type Inline Meter
  • Material Aluminium
  • Weight (kg) 0.9
  • Maximum Working Pressure (psi) 300
  • Flow Range (lpm) 10 to 100
  • Maximum Working Pressure (bar) 21
  • Accuracy (%) ± 5
  • Repeatability (%) ± 0.5
  • Operating Temperature Range (°c) -10 to 50
SKU: A0047589

Alemlube 100LPM Diesel-GPI 1" Digital Inline Meter 01A12LM

Alemlube 100LPM Diesel-GPI 1" Digital Inline Meter

$322.66
RRP $387.20
SAVE $64.54 (17%)
