Description

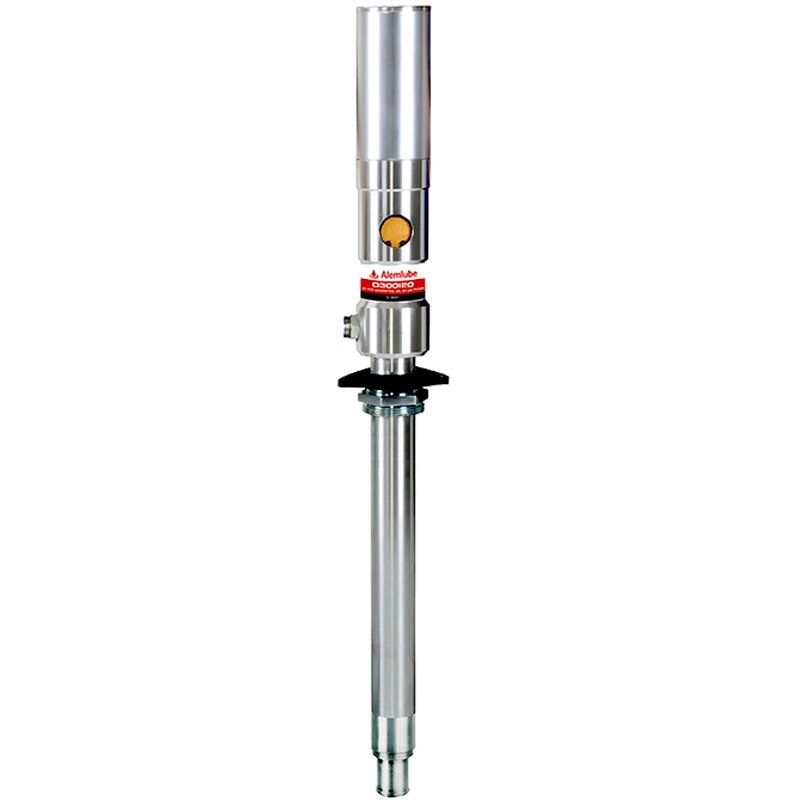

Alemlube Air Operated Oil Tank Pump -  O300120

  • The EL Series O300120 is the ideal oil transfer kit for dispensing oil with a maximum viscosity of SAE130.
  • Representing excellent value for money, the Alemlube EL Series O300120 gives you the opportunity to upgrade from standard hand-operated stub drum pumps to a pneumatic solution.
  • Delivering up to 20L/min with a 3:1 ratio pump, the O300120 is suitable for use with 205L oil drums to perform intermittent or seasonal work.
  • The oil control valve with an ergonomic grip is easy to operate and features a lock-on device for your convenience.
  • Smart design with fewer working parts effectively facilitates a lower cost of ownership.
  • Manufactured with efficiency and reliability in mind, the O300120 3:1 Air-operated Stub Pump is well designed, affordable, and supported by readily available spare parts.

Technical Data

Ratio 3:1
Air Inlet Pressure 30-150psi (2-10bar)
Max Fluid Pressure 450psi (30bar)
Air Consumption 3.6cfm @ 150psi
Max Free Flow Rate 20L/min
Tube Diameter 42mm
Suction Tube Length 270mm
Air Inlet Connection 1/4" quick plug
Oil Delivery Connection Male 1/2"
MaximumViscosityOilDelivered SAE 130
Temperature Oil Delivered -10~50°C
Noise Level 82 dB

Specifications, Features, and Benefits

  • Effortless oil transfer.
  • Smart design with fewer moving parts.
  • 1/2" BSP(m) oil outlet.
  • 1/4" BSP(f) air inlet connection.
  • Suction tube length of 270mm, diameter 42mm.
  • The inlet filter protects against foreign particle contamination.
  • Tested to 600,000L.
  • Saves time and increases productivity.
  • Low cost of ownership.

Specifications

  • AIMS SKU A0171004
  • Brand Alemlube
  • Model Number O300120
  • Barcode Number 9323627006677
  • Type Oil Pump
SKU: A0171004

Alemlube 3:1 Air Operated Oil Tank Pump EL Series

Alemlube Air Operated Oil Tank Pump - O300120

$611.41
RRP $733.70
SAVE $122.29 (17%)
