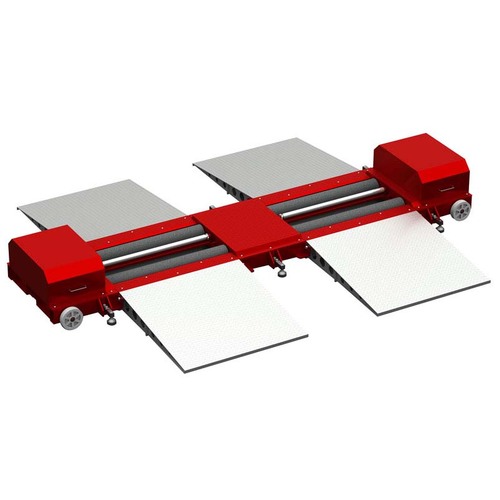

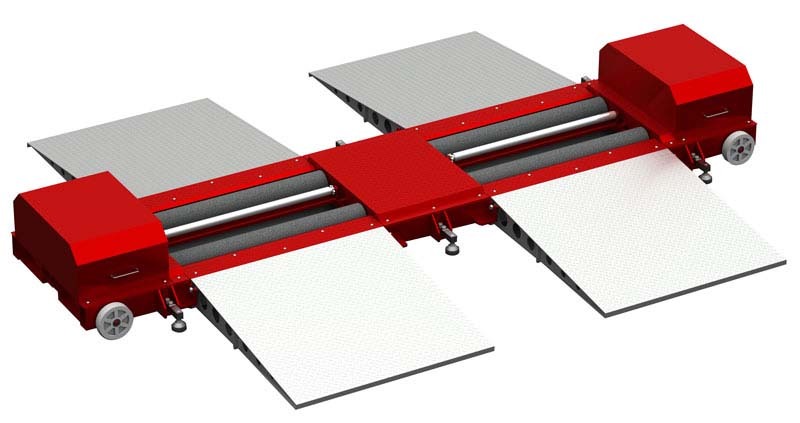

Automotive 15T Mobile Commercial Roller Brake Tester

Axle Load - 15 Tonne

• Drive Power - 11 KW X 2
• Roller diameter - 150mm
• Roller Length 1200mm
• Dimensions 4450mm x 1440mm x 160mm
• Ramp Length 1200mm (Optional 1800mm)

Measurement Include

• Brake Force (N)
• Axle Brake Efficiency (%)
• Sum Brake Efficiency (%)
• Axle Brake Imbalance (%)
• Friction Efficiency (%)
• Axle load (kg)

Features and Benefits

• Complies to the Australian NHRV Standards
• Automatic weight measurements per axle
• All tests saved to database
• Supplied with cabinet, computer, monitor & printer
• All results can be printed in a detailed printout inc weigh-bridge ticket for a total vehicle weight

Options

• Tablet with App - Allows single operator to use
• Aluminium ramps for lighter/mobile applications
• 4WD & reverse function
• Pedal Force Meter
• Shaker Play detector and Side Slip Tester
• Load Simulation option available
• Calibration Kit
