Description

Angular Contact Ball Bearing 2Z (with Metal Shield)

2Z (with metal shield).

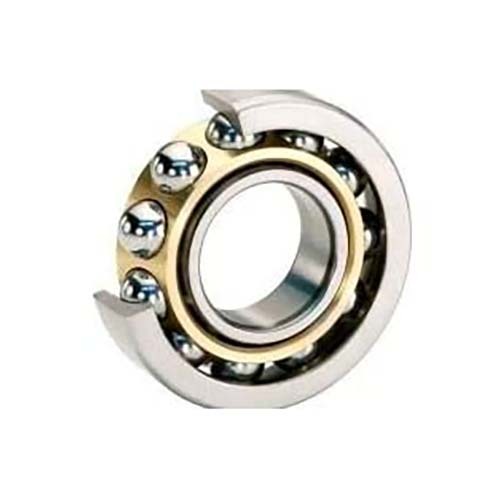

All About Angular Contact Ball Bearings

Angular contact ball bearing supporting combined radial and bidirectional thrust loads ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity steel shields on both sides of the bearing to keep lubricant in and contaminants out.
Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise Normal axial internal clearance for applications where thermal expansion is not a factor.

Specifications

AIMS SKU A0156792

Brand IJK

Model Number 5200ZZ/IJK

Bore Diameter (mm) 10

Width (mm) 14.3

Outer Diameter (mm) 30

Chamfer R(min) 0.6

Balls Number 14

Ball Size 4.762

Load Rating Dynamic C(kgf)/(ibf) 730

Load Rating Static C(kgf)/(ibf) 400

Type Self Aligning Bearings
Series 5200

Calculate Shipping

Resources

JAK/IJK Bearings Catalogue
