Description

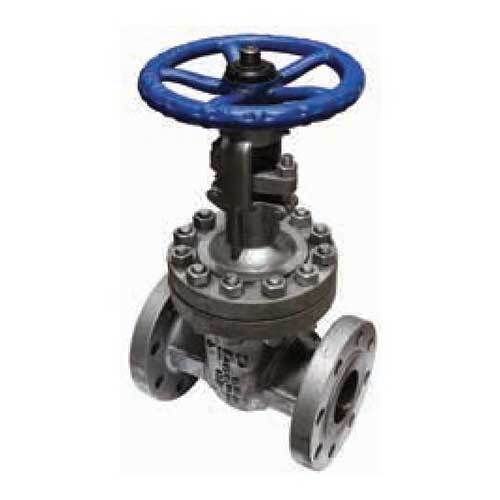

Cast Steel Flanged Gate Valve ANSI 150 & 300

Applications - Petrochemical, Refinery, Chemical, Pharmaceutical Power



Specification

Flange Dimensions

ANSI B16.5

MAX Working Temperature

Class 150

300°C

Class 300

440°C

Cold Working Pressure

Class 150

1960kPa

Class 300

5100kPa



Materials

PART

MATERIAL

Body

ASTM A216 WCB

Seat Ring

ASTM + H/F Stellite

Wedge

ASTM A216 WCB+13Cr

Stem

ASTM A276 T410

Bonnet Gasket

13Cr+Graphite

Bonnet

ASTM A216 WCB

Back Seat Bushing

ASTM A276 T410

Packing

Graphite

Packing Gland

ASTM A276 T410

Gland Follower

ASTM A216 WCB

Oil Cup

Brass

Stem Nut Bushing

Carbon Steel

Hand wheel

ASTM A536

Specifications

  • AIMS SKU A0081108
  • Brand AAP
  • Model Number VGA30050
  • Pipe Size (inch) 2
  • Pipe Size (mm) 50
  • Approx. Kg/pc 30

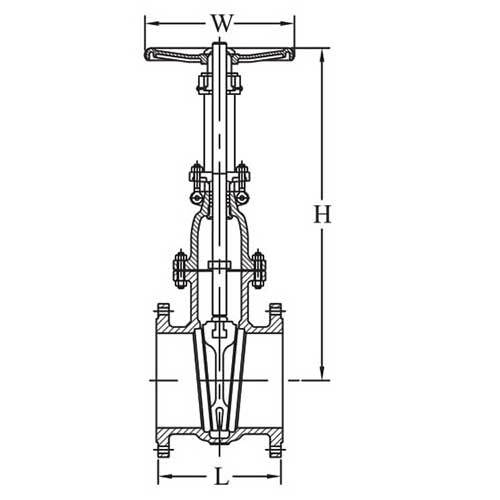

  • Height of handle from Valve (H) 356
  • Valve Handle Length (W) 250
  • Number of holes 8
  • Hole Diameter 20
  • Valve Length 215.9
  • Type Cast Steel Gate Valve
  • Fitting Material Finish Cast Steel
SKU: A0081108

AAP 2" Cast Steel Flanged Gate Valve ANSI 300 Reducing Bore VGA30050

AAP Cast Steel Gate Valve flanged

$584.82
RRP $1,091.64
SAVE $506.82 (46%)
