Austlift Rigging Screw Grade S Eye/Eye 20mm x 3.2T WLL

Description

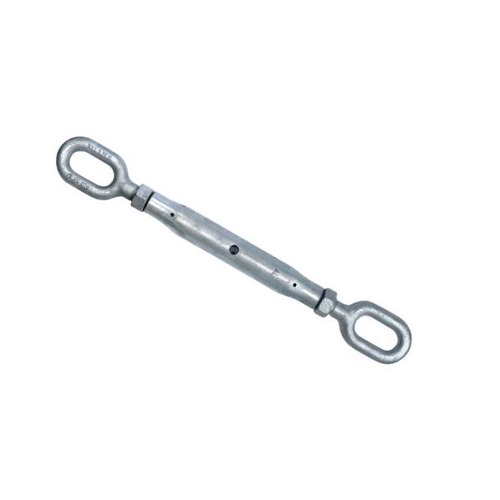

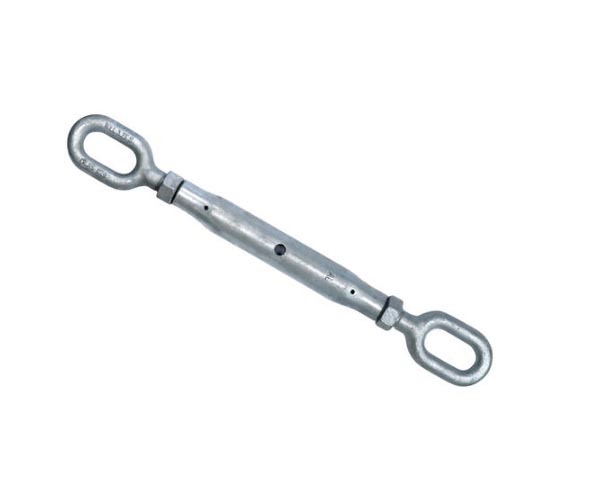

Austlift Rigging Screw Grade S Eye/Eye

Generally used for straight or in line tensioning in conjunction with wire rope and or chain assemblies when heavy duty straining and lifting applications are required.
Manufactured from Grade S high tensile material quenched and tempered hot dipped galvanised finish , suitable for outdoor use, available in metric sizing.
Meets the design requirements of AS2319 Proof tested to 2 x WLL and minimum break force is 6 x WLL.
Suitable for industrial lifting purposes.
Individual proof tested.

Specifications

AIMS SKU A0168979

Brand Austlift

Model Number 407320

Size 20 mm

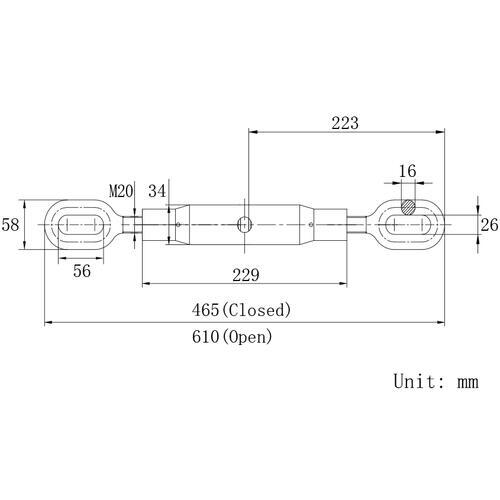

Dimension A (mm) 229

Dimension C (mm) 204

Dimension D (mm) 34

Dimension G (mm) 22

Dimension H (mm) 54

Dimension I (mm) 50

Weight (kgs) 2

WLL 3.2T

Dimension J (mm) 16

Dimension N (mm) 460

Dimension O (mm) 585

Type Rigging Screw
