Description

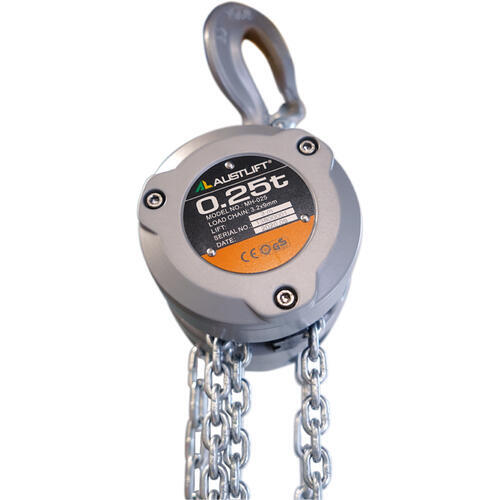

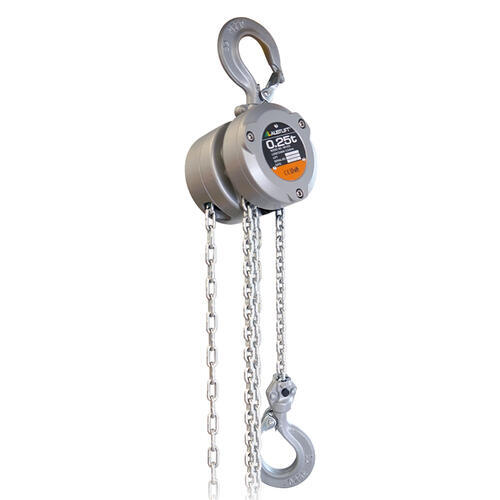

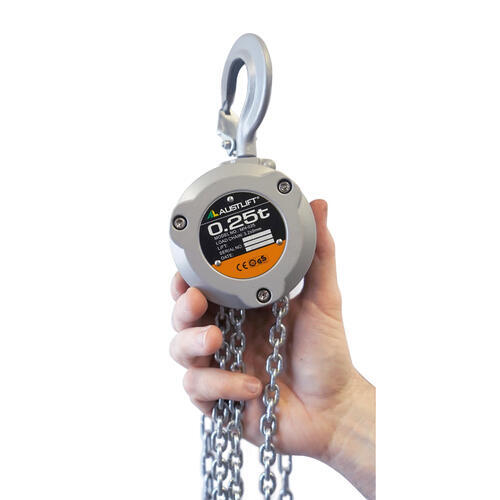

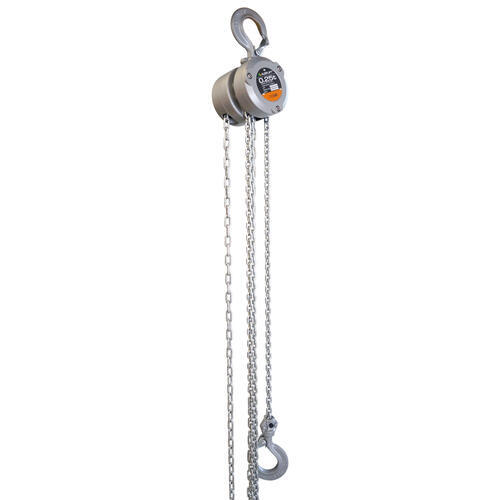

Austlift Chain Block Dynoblock 360°

With a compacted design, enclosed body and aluminium construction, the Austlift Dynoblock 360° is very light weight and easy to carry. The Austlift Dynoblock 360° can be used in the home, factory, field construction, agriculture, warehouse and for small equipment installation purposes. It is also widely used in the chemical and marine industries where anti-corrosion equipment is required.

  • The unit allows the user to position themselves at any angle around the unit (360°).
  • More than 50% lighter than standard chain blocks.
  • Double pawl brake system for increased safety.
  • Heat-treated flexible hooks if overloaded.
  • Galvanised load chain and hand chain for anti-corrosion.
  • Water-resistant.

Specifications

  • AIMS SKU A0168312
  • Brand Austlift
  • Model Number 117025
  • Lift Height (m) 2.5
  • Weight (kg) 2.58
  • Dimension D (mm) 21
  • Dimension E (mm) 32
  • WLL (T) 0.25
  • Test Load (kn) 3.75
  • Pulling Effort (n) 160
  • Chain Size 3.2 mm
  • No. Of Chain Falls 1
  • Added Lift Height Weight / M (kg) 0.62
  • Head Room A (mm) 88
  • Head Room B (mm) 84
  • Hook To Hook C (min) Mm 245
  • Working Load WLL (kg) 250
  • Type Chain Block
SKU: A0168312

Austlift Chain Block Dynoblock 360° 0.25Tonne (250kg) x 2.5m

Austlift Chain Block Dynoblock 360°

$377.70
