Description

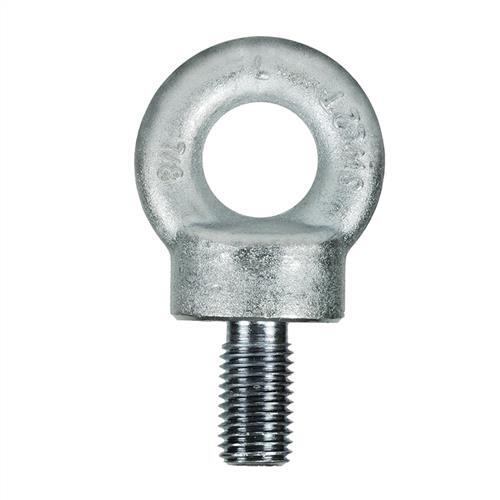

Austlift Eye Bolt BS529 Zinc Plated (BSW Thread)

  • BS529 eye bolts are generally used as a removable lifting point where a rated female thread or nut can be utilized, also can be used as a termination for the chain, wire rope, and other assemblies where required.
  • Made from carbon steel following steel specifications of BS 970 with zinc plated finish, manufactured with a smaller eye than DIN type.
  • Conforms to AS2317, marked with working load limit in tonne, nominal size, quality grade, batch numbered, and supplier identification.
  • Proof tested to 2 x working load limit and minimum breaking force of 6 x workload limit.
  • Test certificates are supplied upon request.

Specifications

  • AIMS SKU A0168885
  • Brand Austlift
  • Model Number 604005
  • Pitch (inch) 0.0625
  • Weight (kg) 0.06

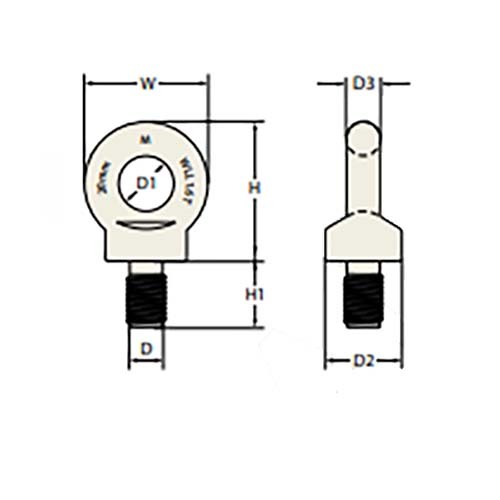

  • D (in) 10
  • d1 (in) 9/16
  • W (in) 32
  • D2 (in) 27/32
  • H (in) 35
  • D3 (in) 11/32
  • WLL 0.3T
  • Size 3/8"
  • H1 (in) 21/32
  • Type Eye Bolt
  • System of Measurement BSW
  • Finish Zinc Plated
  • Standard BS529
SKU: A0168885

Austlift Eye Bolt BS529 Zinc Plated (BSW Thread) 3/8" x 0.3T SWL

Austlift Eye Bolt BS529 Zinc Plated (BSW Thread)

$3.11
