Austlift Eye Bolt Swing 12mm x 2T WLL

Description

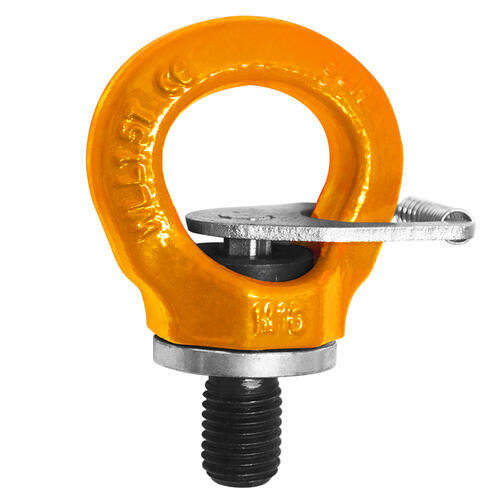

Austlift Eye Bolt Swing

Swivel Eye Bolt Points are accordingly to AS2318 for the swivel component.
Used as a swiveling load ring able to swivel 360° with a pivot of 90°.
Made from G100 alloy steel with Orange painted finish, manufactured with an elongated ring in metric thread sizes 8mm to 20mm.
Marked with work load limit in tonne, nominal size in millimetre, quality mark and supplier identification.
Designed by forged alloy steel, quenched, and tempered.
360° rotation with 90° pivot function.
Rated at 100% at 90° angle.
100% magnaflux crack detection.
Test certificate available upon request.

Proof tested in 2 stages:

1.25 x working load limit with ball bearing included.
Removal of ball bearing that is subject to damages, then 2x working load limit is applied.

Specifications

AIMS SKU A0168894

Brand Austlift

Model Number 605012

Size (mm) 12mm

Weight (kg) 0.2

C (mm) 54

A (mm) 43.5

F (mm) 10

E (mm) 33

b (mm) 32

D (mm) 17

0° WLL (T) 2

90° WLL (T) 0.75

0° BL (T) 8

90° BL (T) 3

Type Eye Bolt Swing
