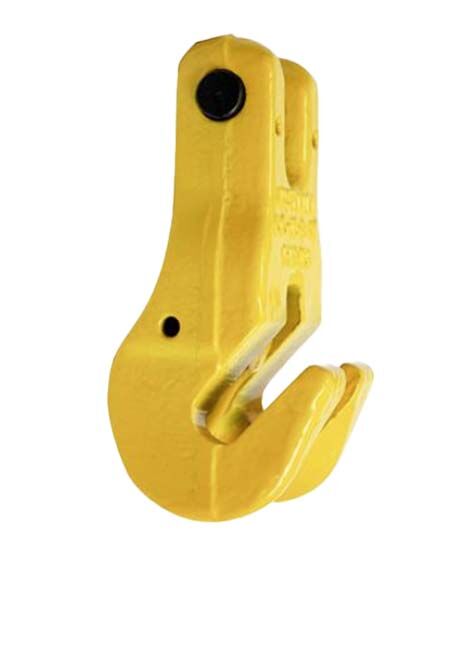

Austlift G80 Claw Hook With Safety Pin SC Type

  • Austlift CCL type lockable clutches have the advantage of shortening a chain sling without the loss of the working load limit.
  • The clevis allows easy connection to chain with the added safety of a chain locking devise to prevent the chain to dislodge from the hook.
  • Marked with sizes, batch number, grade, and Austlift branded with manufacture quality mark.
  • Safety factor of 4 to Batch tested, test certificates available upon request.

Specifications

  • AIMS SKU A0209098
  • Brand Austlift
  • Model Number 102138
  • Barcode Number 9345339033963
  • Size (mm) 8
  • Dimension A (mm) 9.5
  • Dimension B (mm) 38
  • Dimension C (mm) 22.2
  • Dimension E (mm) 11
  • Dimension H (mm) 50
  • Weight (kgs) 0.9
  • Dimension L (mm) 109
  • WLL 2 T
  • Dimension K (mm) 69
  • Dimension N (mm) 9.5
  • Dimension M (mm) 46.5
  • Dimension Ø (mm) 9.5
  • Dimension L' (mm) 36
  • Type Claw Hook
  • Grade G80
SKU: A0209098 On Sale

Austlift G80 Claw Hook With Safety Pin SC Type 8mm - 102138

Austlift G80 Claw Hook With Safety Pin SC Type

$40.95
$54.60
