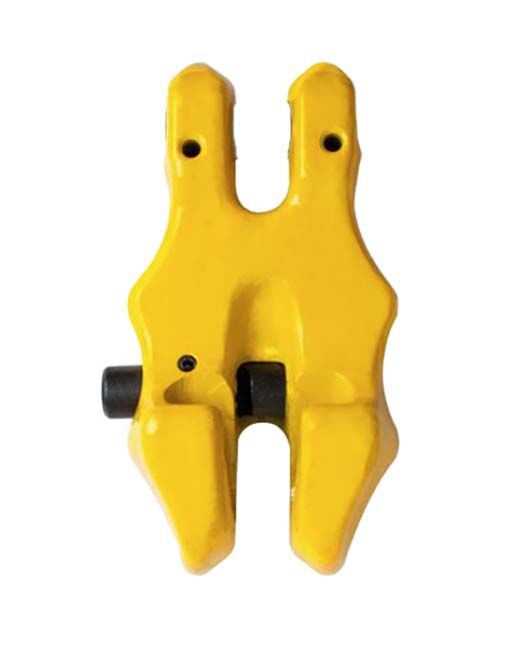

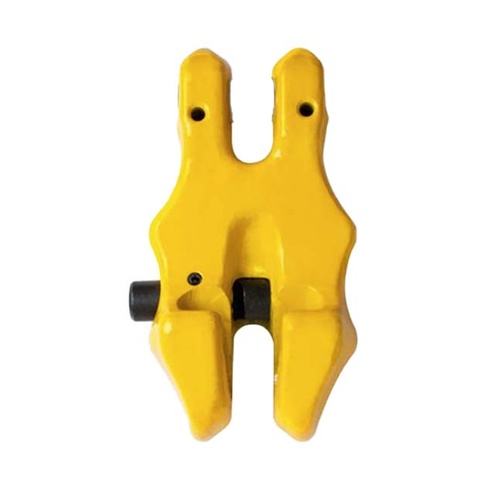

Austlift G80 Clevis Clutch With Safety Pin

Description

Austlift G80 Clevis Clutch With Safety Pin

Austlift CC type lockable clutches have the advantage of shortening a chain sling without loss of the working load limit of the sling.
The clevis allows easy connect on to chain.
Not recommended for use as bottom fitting of sling for back-hooking and reeving applications.
Marked with sizes, batch number, grade, and Austlift branded with manufacture quality mark.
Batch tested, test certificates available upon request.

Specifications

AIMS SKU A0209101

Brand Austlift

Model Number 102110S

Barcode Number 9345339004956

Size (mm) 10

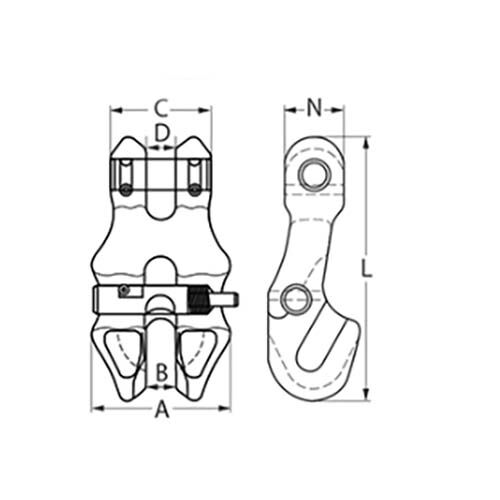

Dimension A (mm) 60

Dimension B (mm) 12.5

Dimension C (mm) 43

Dimension D (mm) 12.5

Weight (kgs) 0.75

Dimension L (mm) 115

WLL 3.2 T

Dimension N (mm) 26

Dimension P (mm) 13.3

Dimension M (mm) 40

Type Clevis Clutch
Grade G80
