Austlift G80 Clevis Grip Self Locking Hook NC Type

Description

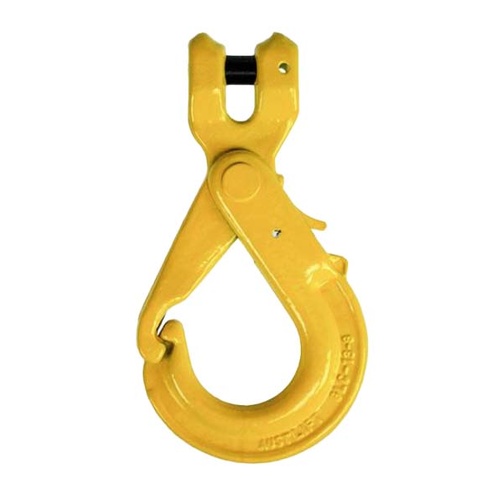

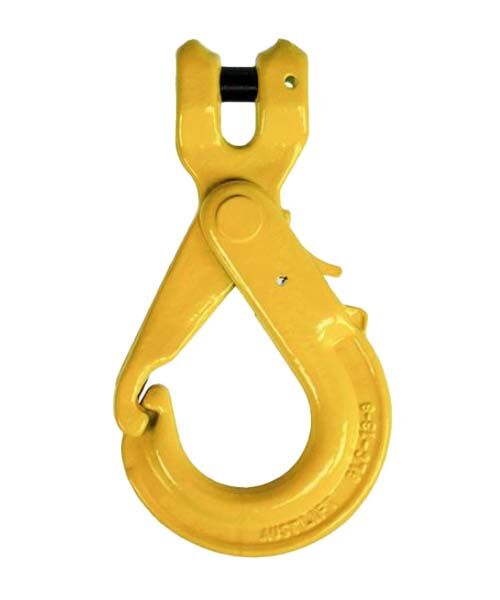

Austlift G80 Clevis Grip Self Locking Hook NC Type

Austlift GLC type eye grip-locking hook allows the hook to remain open until the load is engaged.
The hook will not open until the trigger at the back is pressed.
Eye style allows easy connection to the chain and also has a unique design to prevent side loading of the latch.
Marked with chain sizes, batch number, grade, and Austlift branded with manufacture quality mark.
Batch tested, test certificates available upon request.
Spare trigger kits and load pins are available.

Specifications

AIMS SKU A0209111

Brand Austlift

Model Number 102508

Barcode Number 9345339005243

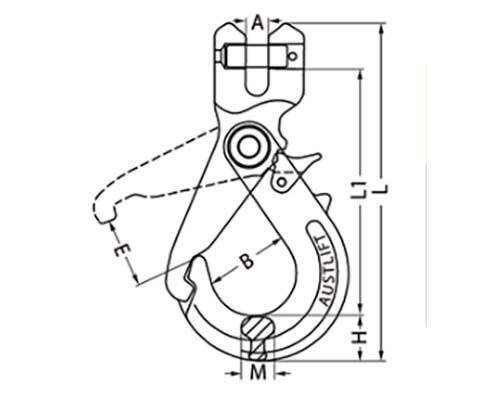

Size (mm) 8

Dimension A (mm) 9.5

Dimension B (mm) 40

Dimension E (mm) 21.5

Dimension H (mm) 34

Weight (kgs) 0.6

Dimension L (mm) 150

WLL 2 T

Dimension L1 (mm) 111

Dimension M (mm) 18

Type Clevis Self Locking Hook
Grade G80
