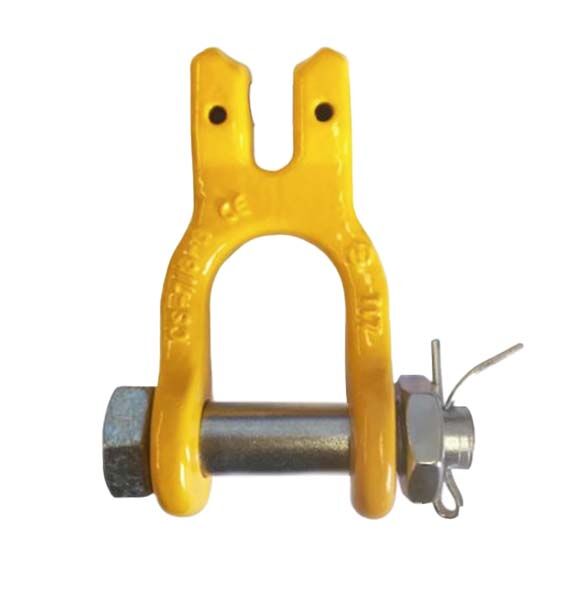

Austlift G80 Clevis Shackle

Description

Austlift G80 Clevis Shackle

Austlift G80 clevis shackle, has been designed to use as a terminal end connecting directing to the chain at the clevis end.
Marked with chain size, batch number, grade, Austlift branded with manufacture quality mark.
Batch tested, test certificates available upon request.
Spare latch kits are available.
Safety factor 4 to 1.

Specifications

AIMS SKU A0209104

Brand Austlift

Model Number 104310

Barcode Number 9345339005816

Size (mm) 10

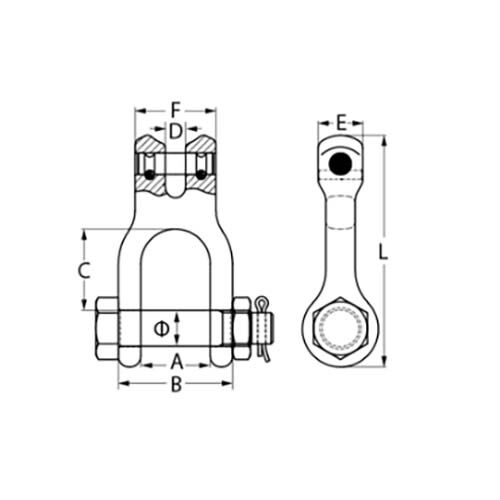

Dimension A (mm) 34

Dimension B (mm) 62

Dimension C (mm) 48

Dimension D (mm) 12.5

Dimension E (mm) 25

Dimension F (mm) 46.5

Weight (kgs) 0.9

Dimension L (mm) 130.7

WLL 3.2 T

Dimension Ø (mm) 20

Type Clevis Shackle
Grade G80
