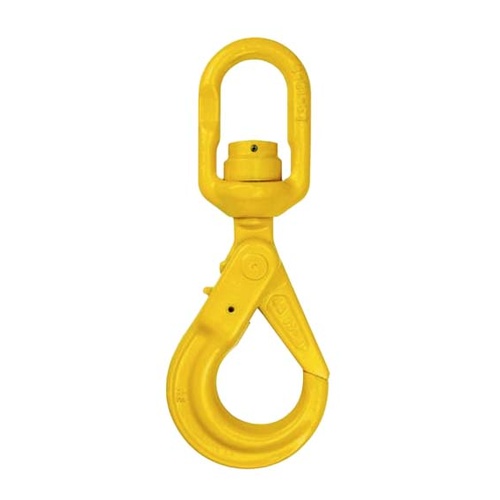

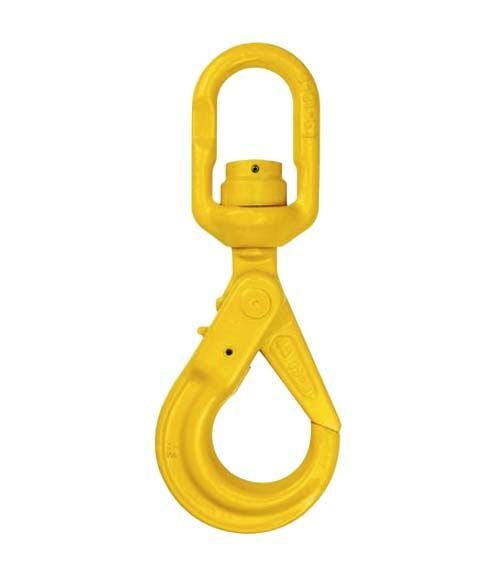

Austlift G80 Swivel Self Locking Hook W/ Ball Bearing

Description

Austlift G80 Swivel Self Locking Hook W/ Ball Bearing

Austlift LS type swivel self-locking hooks have a ball bearing swivel to allow the hook to swivel underload thus reducing the twist of a sling.
Designed with enlarged eye for passing larger shackles without disassembly of the hook.
Ball bearing swivel allows the hook to rotate under full load.
Marked with chain sizes, batch number, grade, and Austlift branded with manufacture quality mark.
Batch tested, test certificates available upon request.
Spare trigger kits are available.

Specifications

AIMS SKU A0209140

Brand Austlift

Model Number 102406

Barcode Number 9345339005199

Size (mm) 6

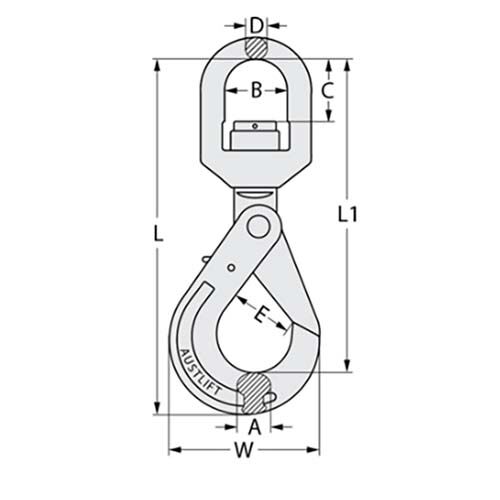

Dimension A (mm) 15

Dimension B (mm) 32

Dimension C (mm) 38

Dimension D (mm) 11.5

Dimension E (mm) 27

Weight (kgs) 0.74

Dimension L (mm) 196

WLL 1.12 T

Dimension W (mm) 69.7

Dimension L1 (mm) 161

Type Swivel Self Locking Hook
Grade G80
