Description

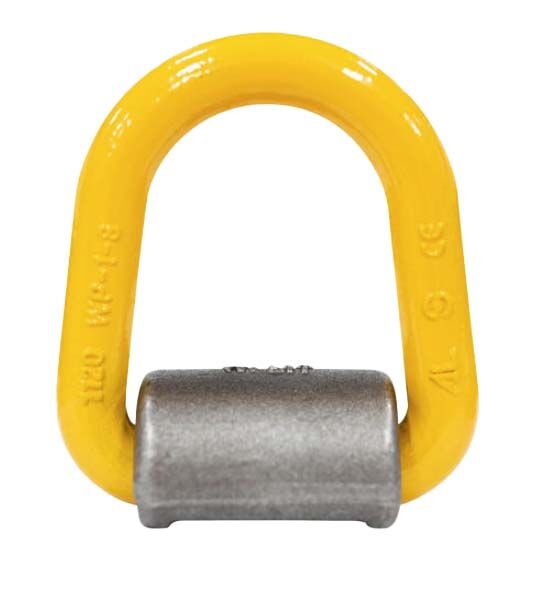

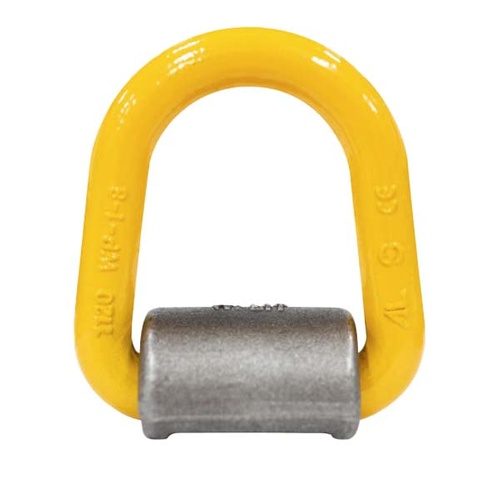

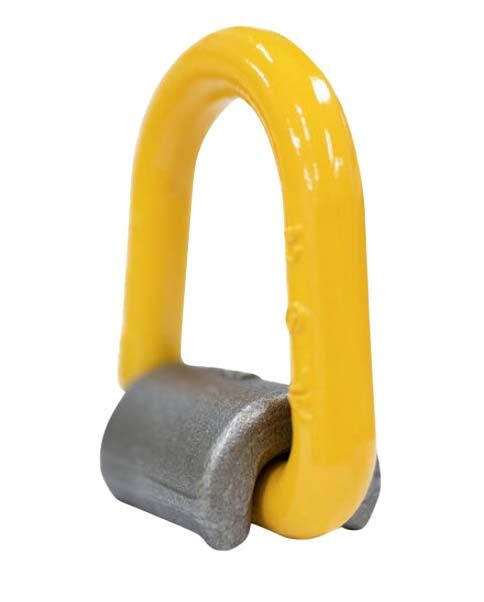

Austlift G80 Weld On Lifting Point WP Type

  • Austlift WP type weld onlifting points can be welded on any carbon steel surface as a lifting point,or to be used as a fixed anchor point for spreader beam attachment.
  • Can also be used as an anchor point forload restraint applications.
  • Marked with chain size,batch number. grade, WLL, Austlift branded with manufacture quality mark.
  • Batchtested,test certificates available upon request.
  • Weldinginsuuct ons supplied with each unit.

Specifications

  • AIMS SKU A0209193
  • Brand Austlift
  • Model Number 104001
  • Barcode Number 9345339005670
  • Dimension B (mm) 55
  • Dimension C (mm) 35
  • Dimension D (mm) 14
  • Weight (kgs) 0.55
  • WLL (T) 1
  • Dimension W (mm) 50
  • Dimension C1 (mm) 95.7
  • Type Weld on Lifting
  • Grade G80
SKU: A0209193

Austlift G80 Weld On Lifting Point WP Type 1T - 104001

Austlift G80 Weld On Lifting Point WP Type

$9.96
